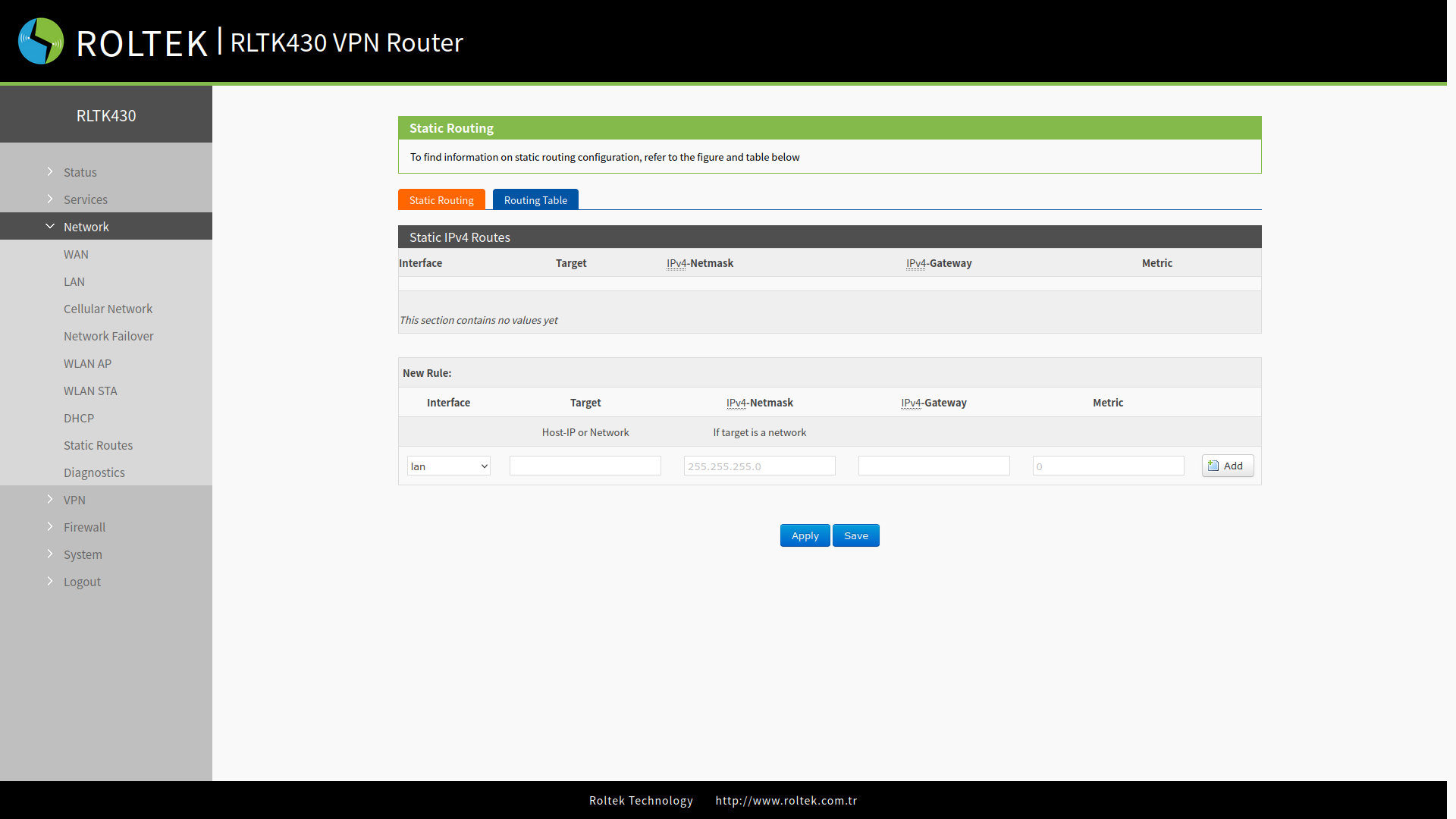

Static Routing (Static Routes)
To configure static routing settings on RLTK430:
- Network
- Static Routes
follow the menus.
| Parameter | Description | Default Value |
|---|---|---|
| Interface | lan, wan_wired, wan_4g, wan6_4g, vpn | lan |
| Target | Target IP address or IP range | Null |
| IPv4-Netmask | Subnet mask of the target network | Null |
| IPv4-Gateway | IP address to route to | Null |
| Metric | Used to make routing decisions | Null |

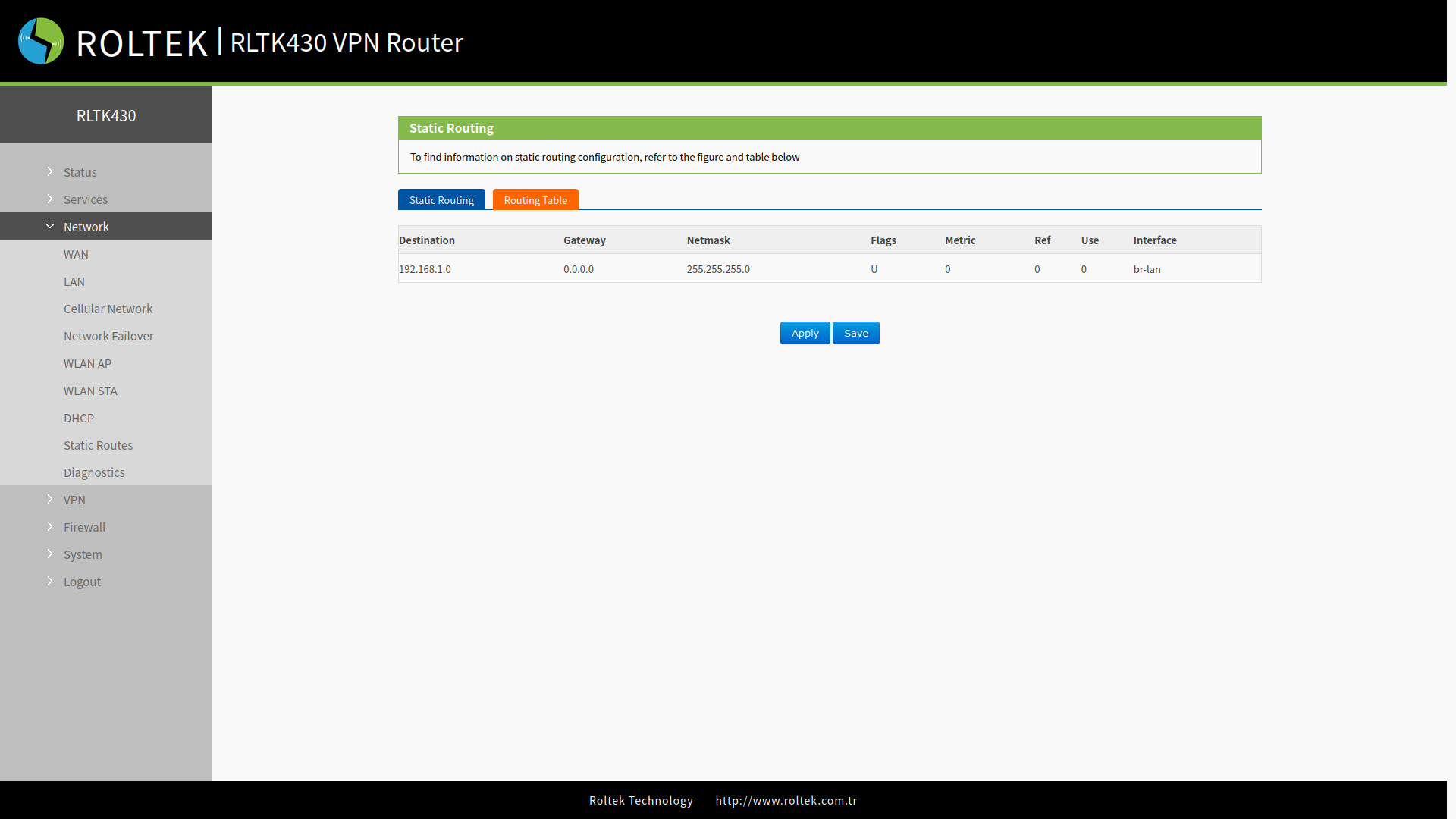

Routing Table
All routing rules can be observed in the Routing Table tab.
