RS-485 Settings

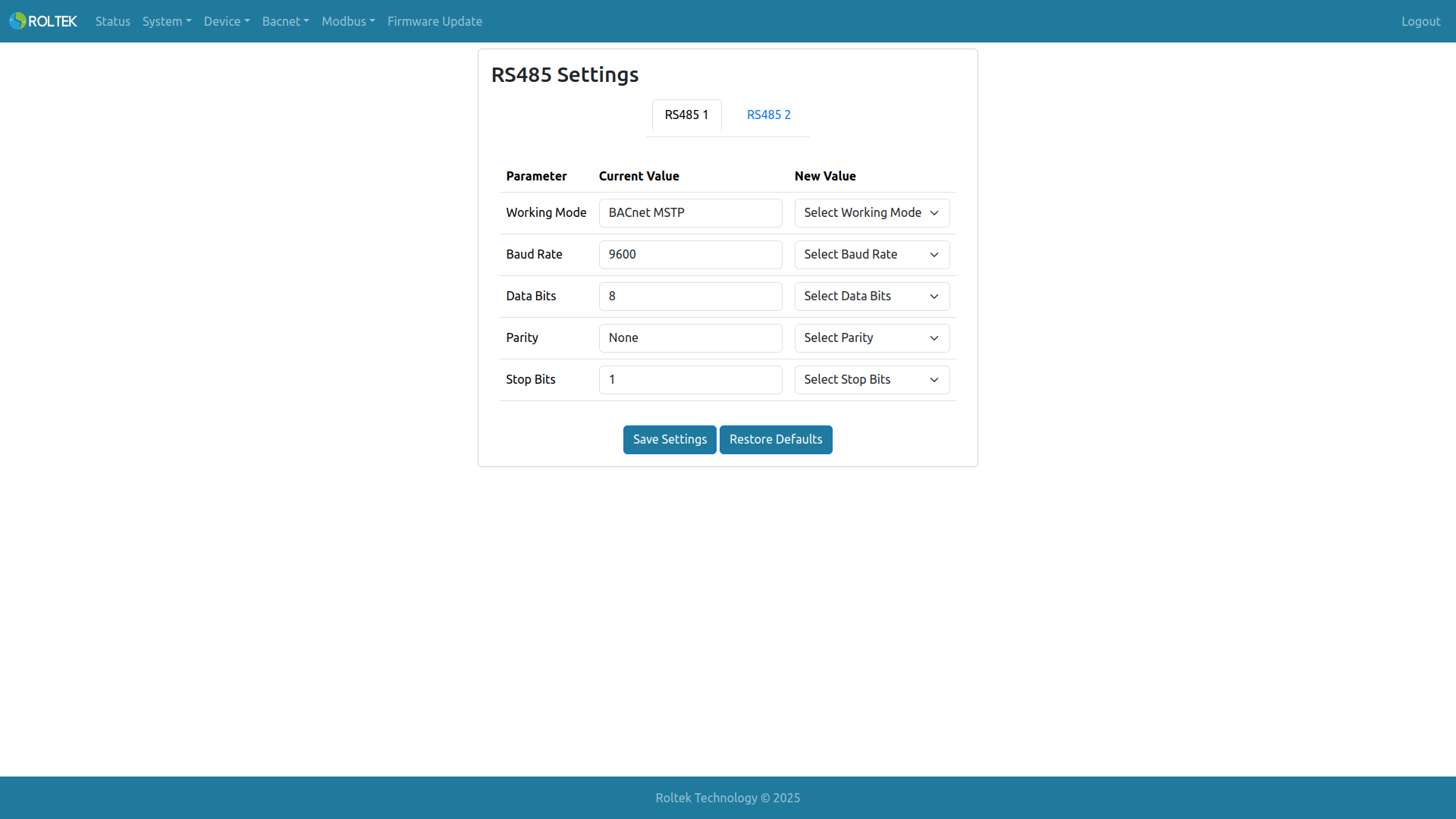

There are 2 RS485 ports available on the DC620 DUAL BACnet IoT Gateway. Both can be configured by the user. You can switch between RS485 1 and RS485 2 configurations using the tabs. Current Value shows the current value of the parameter; a new value can be entered in the New Value section. After making new settings, the settings can be saved with Save Settings. Restore Defaults resets the RS485 settings to default.

  • Working Mode: Disabled, BACnet MS/TP, Modbus RTU
  • Baud Rate: 9600, 19200, 38400, 57600, 115200
  • Data Bits: 5, 6, 7, 8
  • Parity: None, Even, Odd
  • Stop Bits: 1, 1.5, 2

Warning: Restore Defaults resets the settings of both RS485 ports to default.
