Technical Specifications
Physical Interface
| Current Input | 4 to 20 mA (2 channel) |
| Current Input Resolution (I1/I2) | 0.001 mA |
| Voltage Input | 0 to 10V (2 channel) |
| Voltage Input Resolution (V1/V2) | 0.01 mV |
General Parameters
| Product Model | SensNode-LR-DL |
| Supported Protocol | LoRaWAN v1.0.3 Class A |
| Long Range Channel Plan | IN865/EU868/US915/AU915/ AS923* |
| Max. Transmission Power | 19dBm |
| Sensitivity | -136dBm@SF12 BW=125KHz |
| Communication Range | 2 – 10km (depending on the environment) |
| IP Protection Class | IP66 |
| Operating Temperature | -40 to +85 °C |
| Operating Humidity | %0 to %100 RH (non-condensing) |
| Device Weight | 280g |
| Certification | CE / FCC / RoHS |
Battery
| Battery Life | Up to 10 years** |
| Battery Capacity | 19Ah (non-rechargeable) |
| Battery Type | Standard D size SOCl2 Battery |

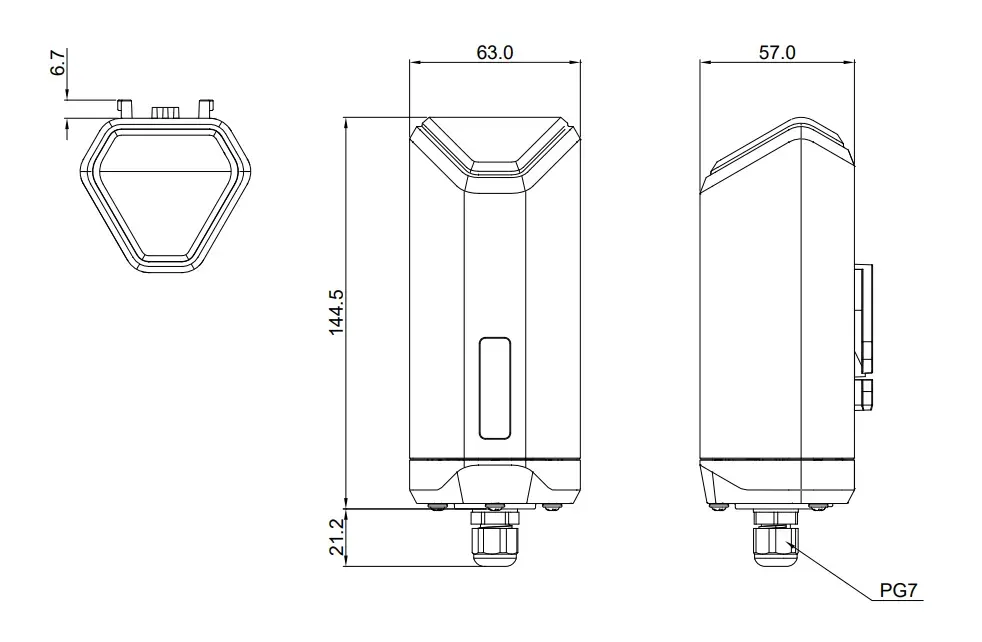

Dimensions
| Measurement | Value (mm) |
|---|---|
| Top cross-section height | 6.7 |
| Width | 63.0 |
| Total height | 144.5 |
| Bottom section height | 21.2 |
| Side view width | 57.0 |
| Bottom connection | PG7 |
