Sensor Installation

Device Waterproofing​

Data Logger Connection Port​

  • Ensure that the screw head is tightened by checking the connection position of the datalogger probe.
  • Waterproof tape can be used to wrap the connection several times to enhance waterproof performance.

Waterproofing Check​

When mounting the device, it is necessary to install the waterproof pad of the Data Logger and the adapter box and to tighten the screw head and screw; otherwise, the waterproof effect of the device may be adversely affected!

If the cable diameter is too small, it can be wrapped with waterproof tape.

Installing the Sensor Bracket​

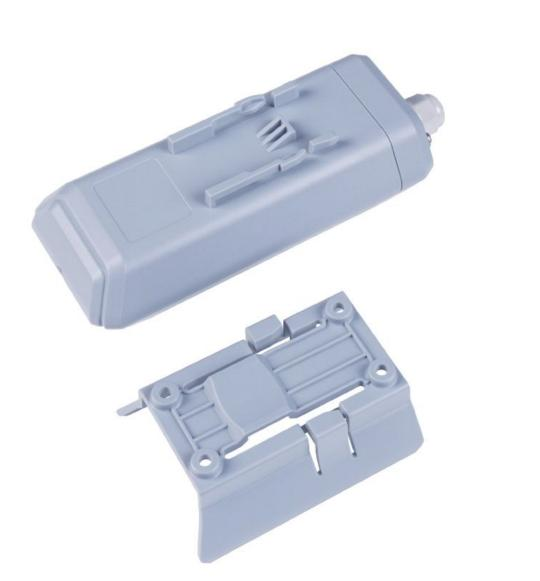

The bracket is a sliding cover. With designated screw holes, the bracket helps securely attach the sensor to a pole or wall.

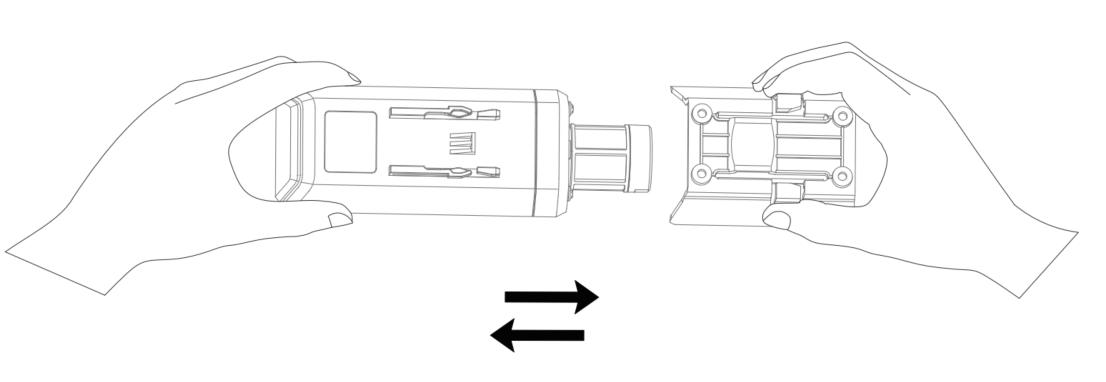

  • Hold the sensor in one hand and the bracket in the other hand to find an unobstructed direction along the back of the sensor.

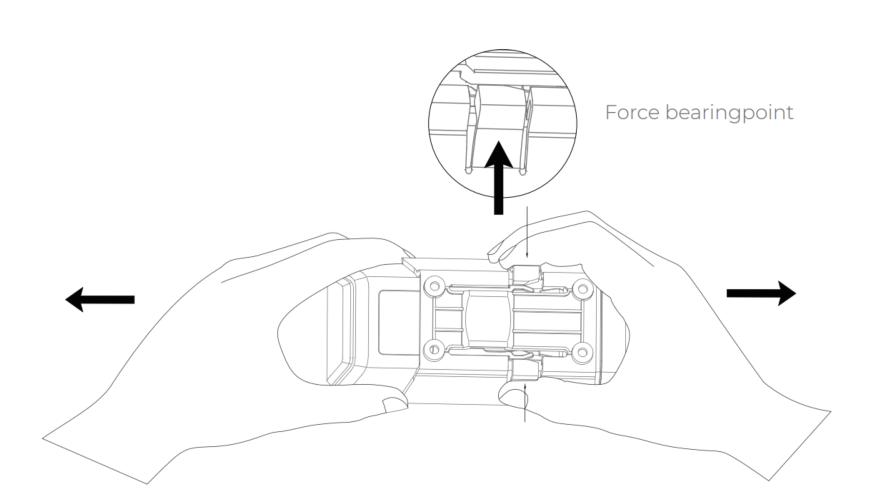

  • While holding one hand on the latch, the other hand holds the device. Pull outward by applying force in the opposite direction. Press down on the top of the latch with your finger.

Mounting on Pole and Wall​

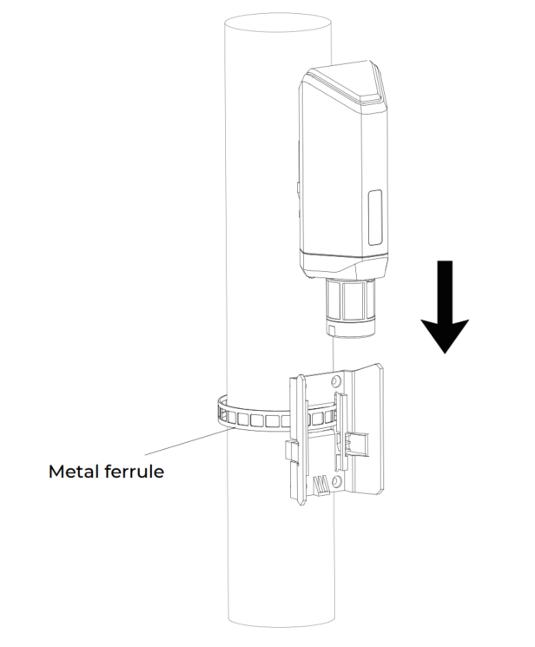

Mounting on Pole​

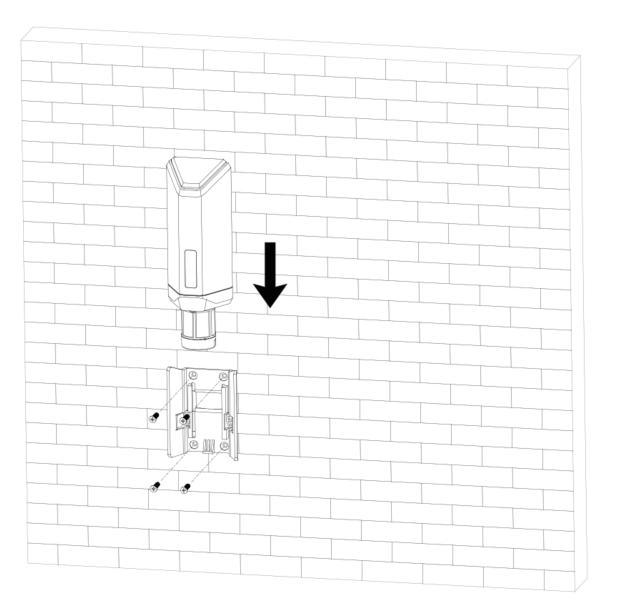

Mounting on Wall​

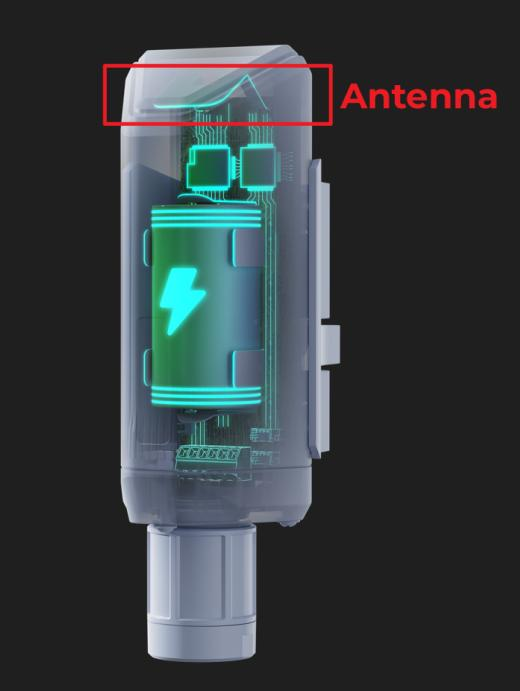

Antenna Installation Direction​

When installing, pay attention to the antenna installation direction for better signal strength and longer communication distance between the sensor and the gateway.

Aim the antenna towards the gateway and install both the sensor and the gateway at higher points to reduce obstacles in the line of sight between them. This will provide stronger signal strength.
