Battery Replacement
You can search for EEMB ER34615 using the keyword: LiSOCI2 ER34615 battery. Compare the batteries that match the parameters below. The most important parameter is the equivalence of voltage.
| Battery Specifications | |
|---|---|
| Nominal Capacity | 19000mAh |
| Model | Li-SOCl2, ER34615 |
| Nominal Voltage | 3.6V |
| Max. Continuous Current | 230mA |
| Max. Pulse Current Capacity | 400mA |

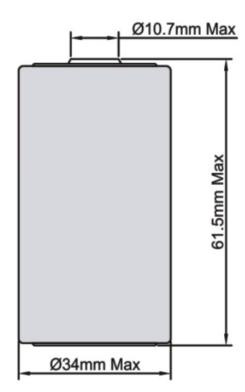

| Size | 34.0 x 61.5mm (D size) |
| Operating Temperature Range | -60℃ – 85℃ |
How to Replace a New Battery

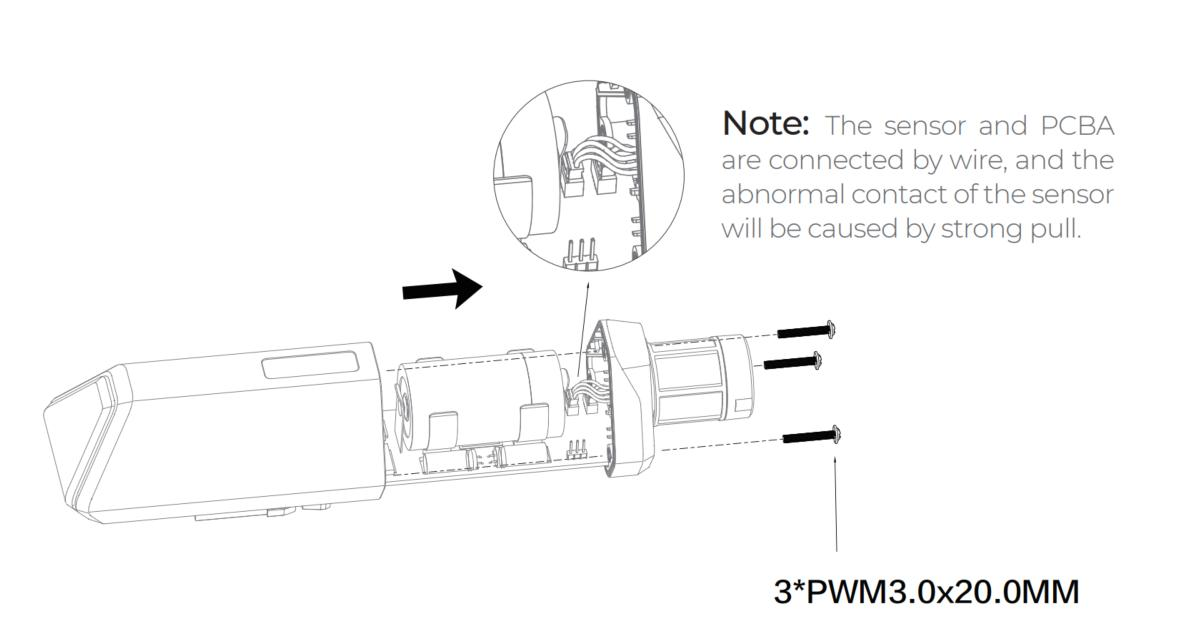

- Remove the three screws.
Warning: The sensor is connected to the PCBA via a cable, please remove it carefully.

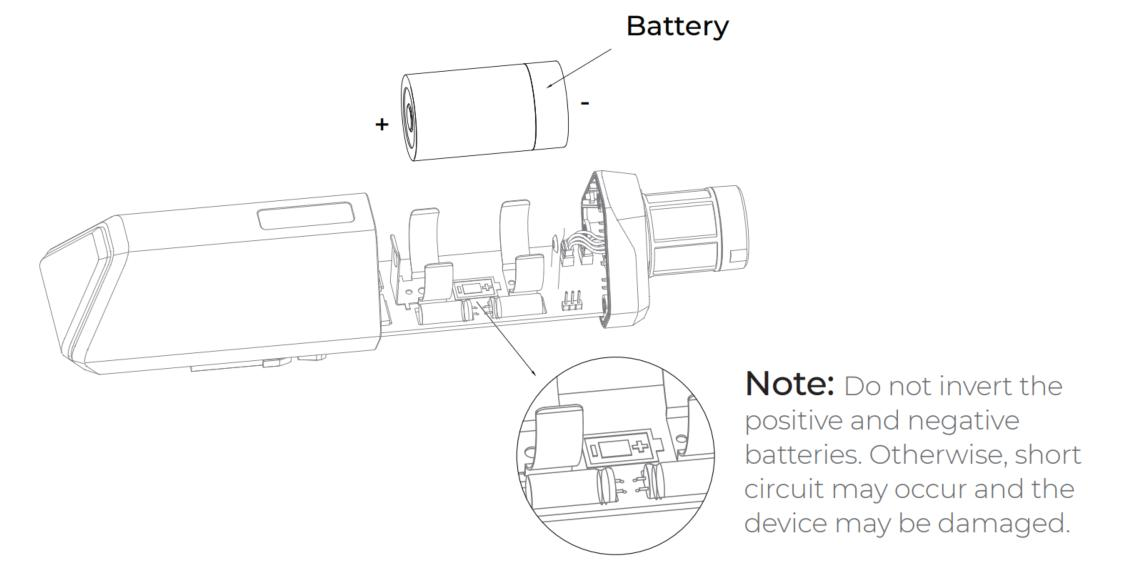

- Insert a new battery.
Warning: Pay attention to the positive and negative terminals of the battery.

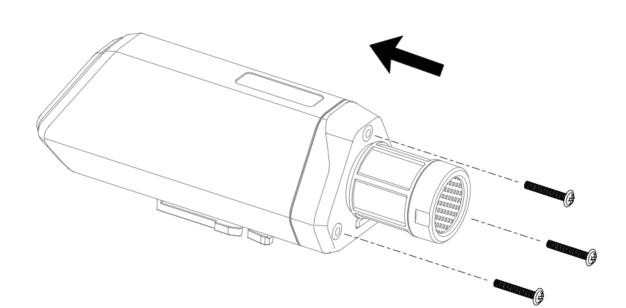

- Replace the screws.
Warning: During assembly, ensure that the waterproof washer is properly installed and that the screws are tightened; otherwise, water may enter the device.
