DHCP

  • Network
  • DHCP

By following the menus, we can assign a static IP address and hostname to a DHCP Client device. Only specific clients can be connected, and the LAN interface mode cannot be DHCP. Static IP addresses can be assigned to MAC addresses. A maximum of 10 rules can be added.

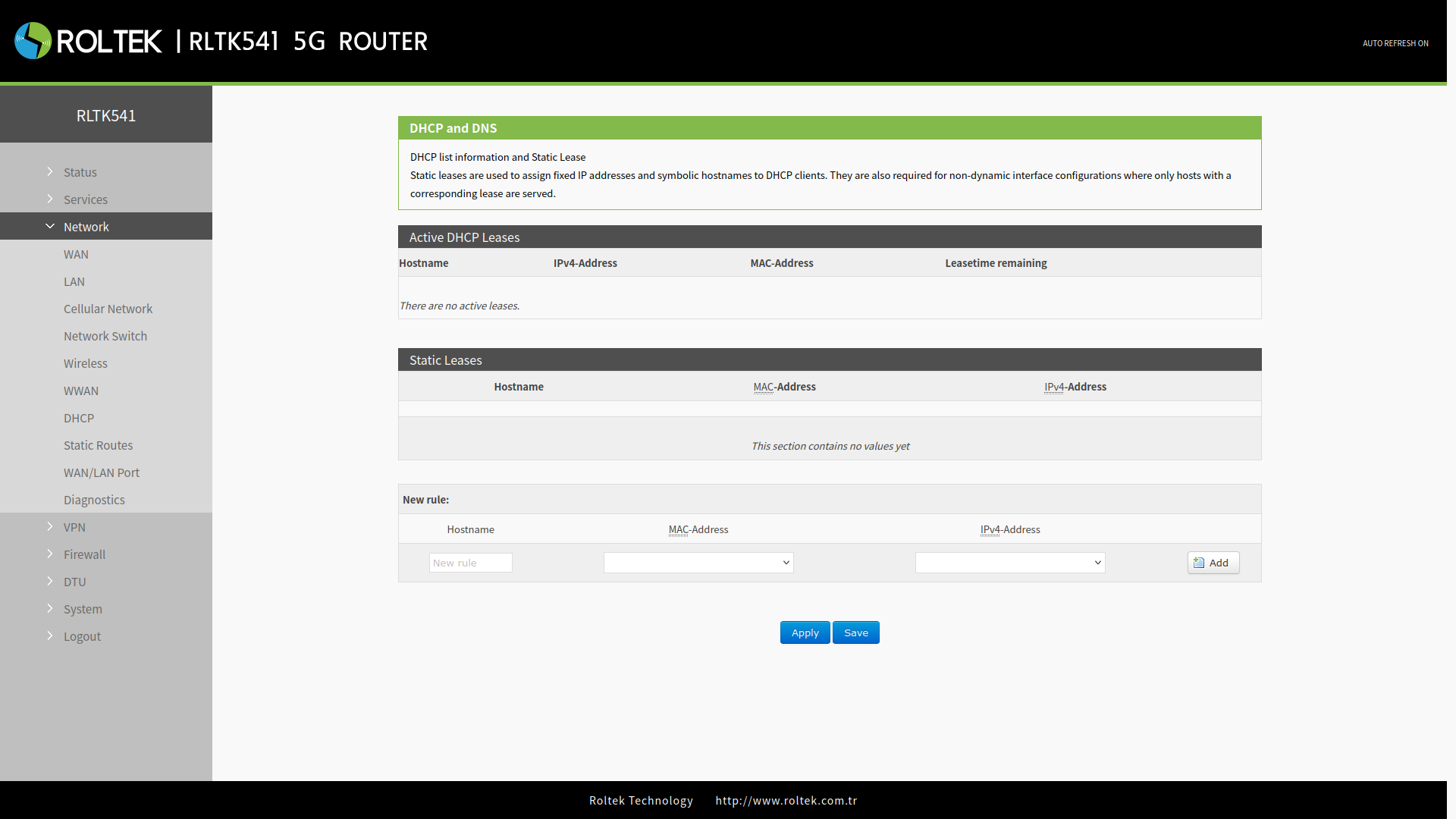

DHCP-541

  • If Hostname is empty, IP and MAC Address are connected.
  • If MAC Address is empty, Hostname and IP are connected.
  • When all values are entered, MAC Address is connected to the IP address, and a Hostname is defined for this MAC Address.
  • The entered IP address must be in the same network segment as the RLTK541's LAN IP address.

Add the rule with the Add button, then save your settings with the Save and Apply buttons.
