LAN Interface

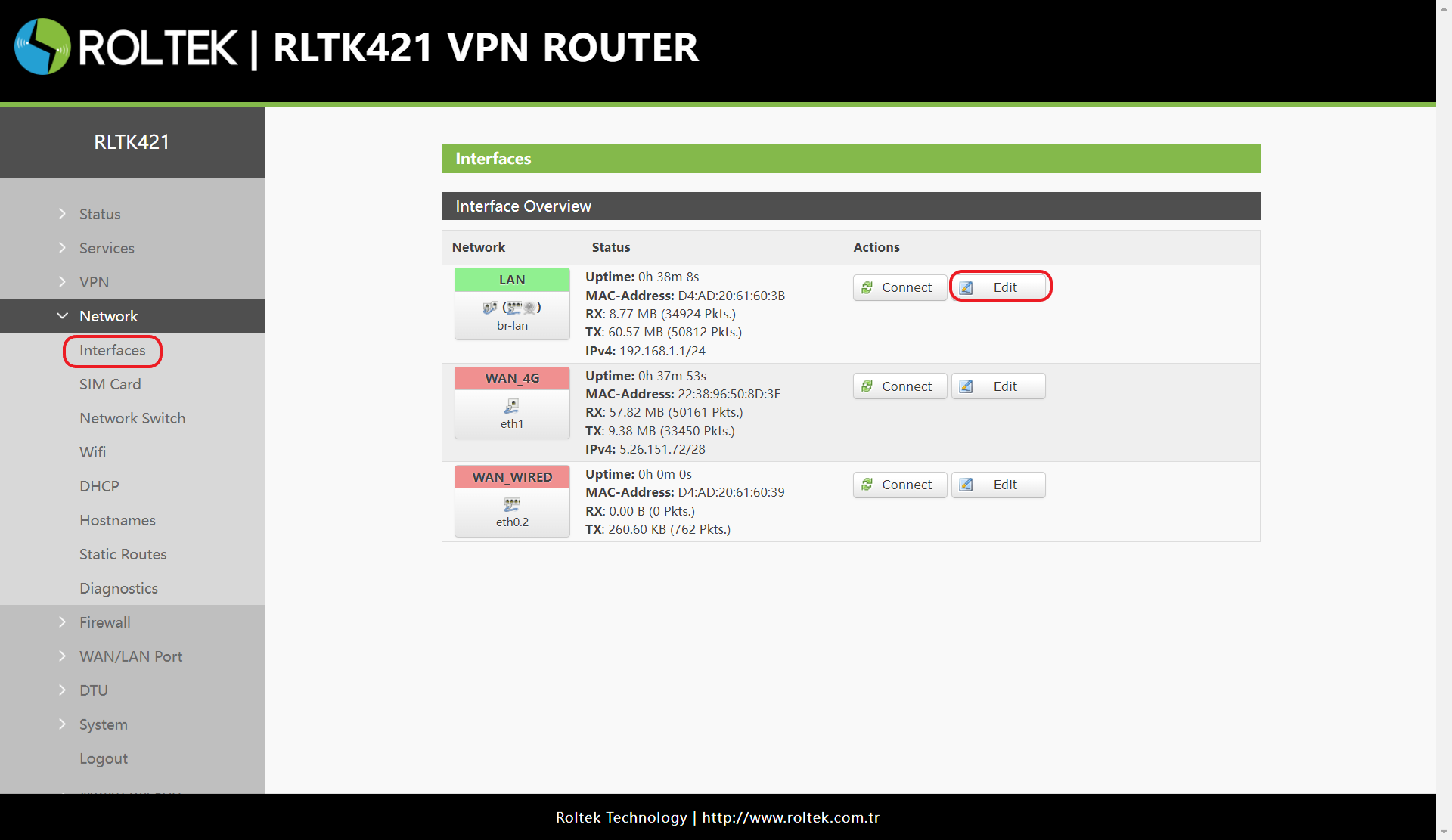

To view the local network settings of the RLTK421:

  • Network
  • Interfaces

the menus can be followed. The LAN connection status will be visible. Reconnection can be attempted with the Connect button. The settings of the LAN network can be configured by clicking the Edit button.

LANInfo-421

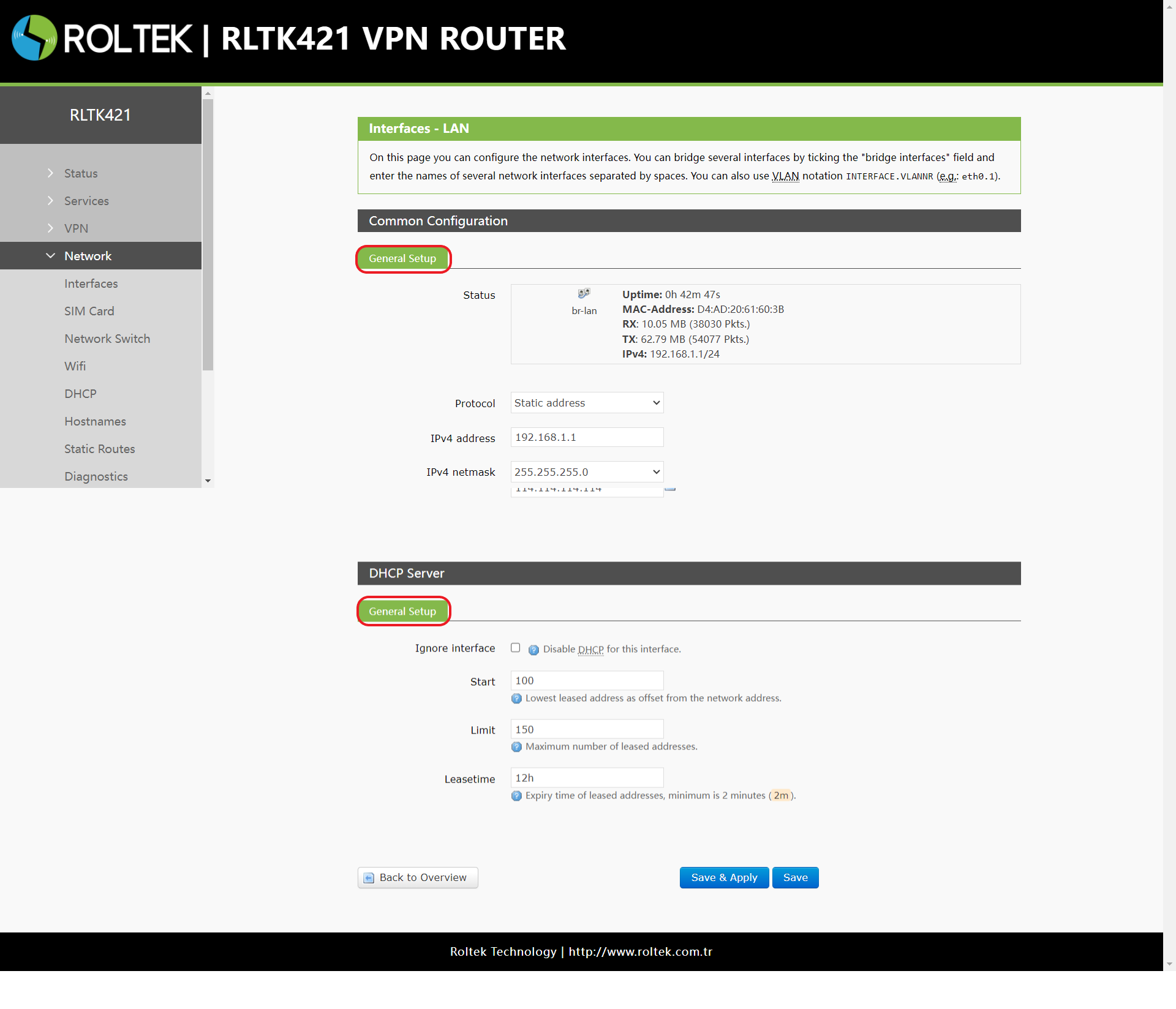

The section under Common Configuration is where the IP settings of the LAN network are configured. The section under DHCP Server contains the settings related to the device's DHCP server.

Common Configuration​

  • The LAN interface uses a static IP address of 192.168.1.1 and a subnet mask of 255.255.255.0 by default. These parameters can be changed.
  • The Wi-Fi interface (WLAN) and wired LAN are on the same LAN network.

After entering the settings, the Save & Apply button should be clicked to save the settings.

LANInfoEdit-421

DHCP​

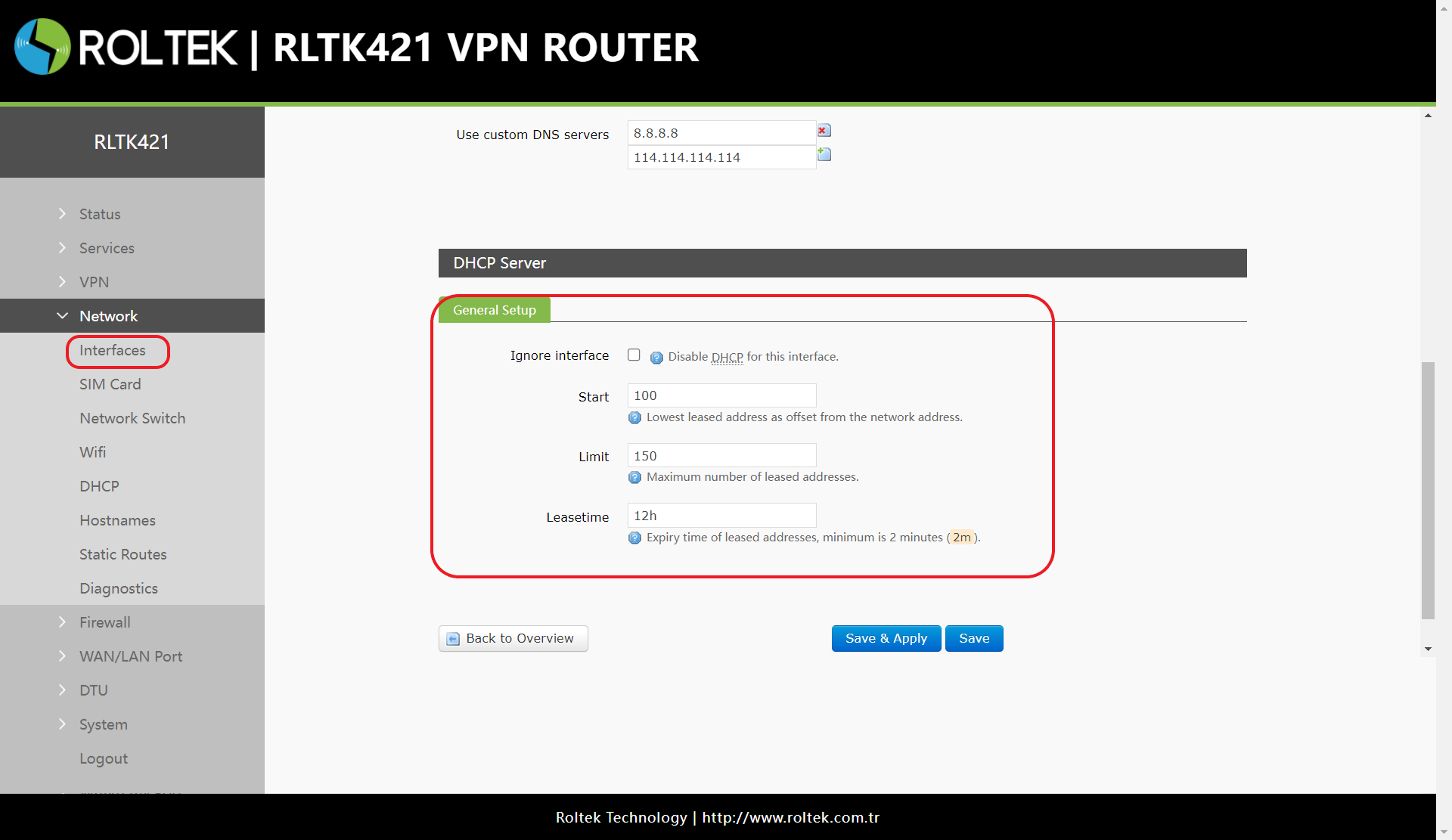

The DHCP server function is enabled by default, and all devices connected to the LAN port automatically receive an IP address (if the devices are set as DHCP Clients).

  • We can change the starting address and lease time of the DHCP Client.
  • DHCP addresses are assigned starting from 192.168.1.100 by default.
  • The default lease time is 12 hours.

After entering the settings, the Save & Apply button should be clicked to save the settings.

LANInfoDHCP-421

Static IP​

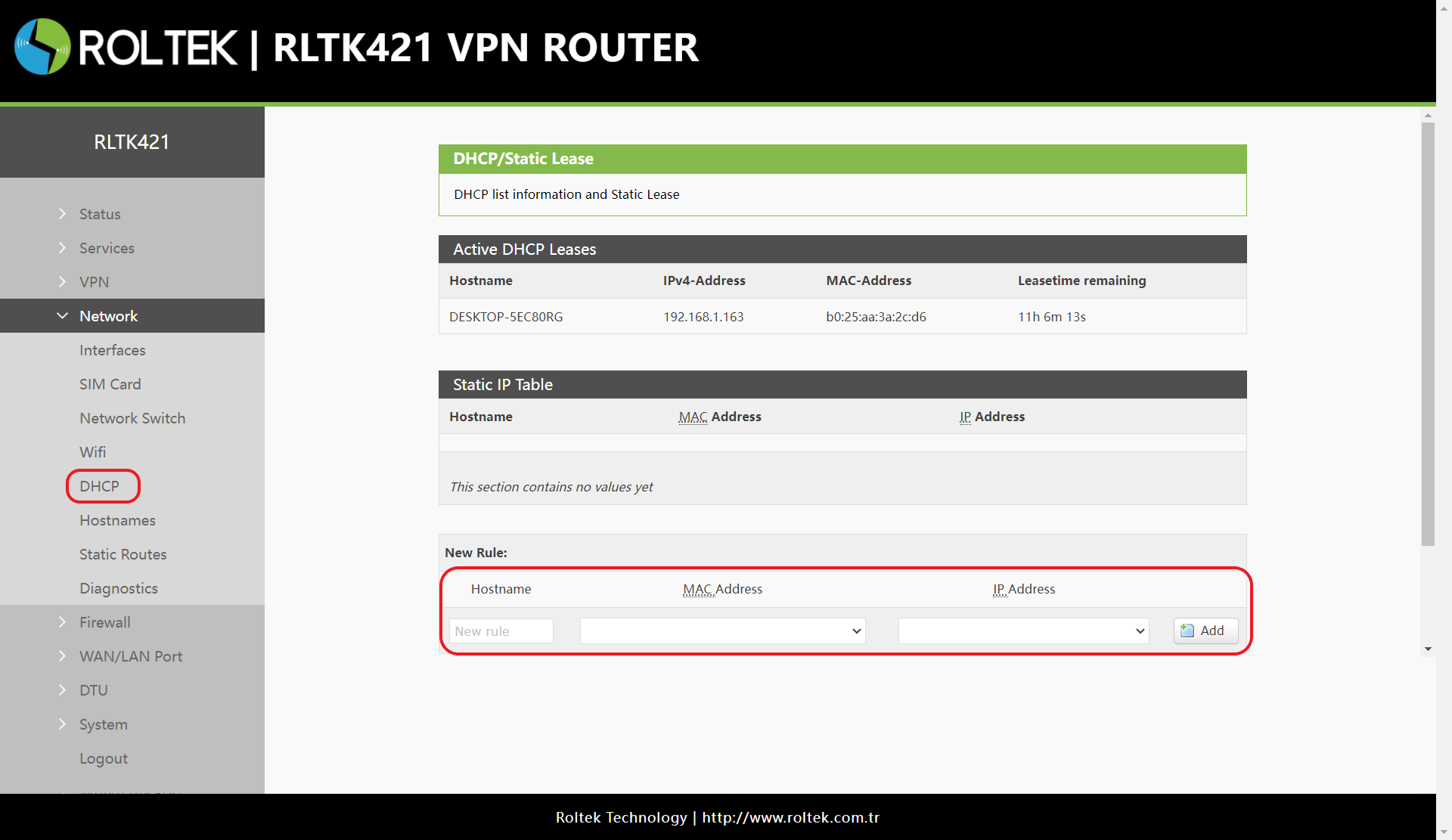

  • Network
  • DHCP

the menus can be followed to assign a static IP address and hostname to a DHCP Client device. Only a specific client can be connected, and the LAN interface mode cannot be DHCP.

LANInfoStaticIP-421
