Static Routing
To configure static routing settings on the RLTK421:
- Network
- Static Routes
follow the menus. The RLTK421 supports up to 20 static routes.
| Parameter | Description | Default Value |
|---|---|---|
| Interface | lan, wan_4G, wan_wired, vpn | lan |
| Target | Target IP address or IP range | Null |
| Netmask | Subnet mask of the target network | Null |
| Gateway | IP address to route to | Null |
| Metric | Used to make routing decisions | Null |
Example Connection Diagram
Router A's WAN port and Router B's WAN port are connected to the 192.168.0.0 network. Router A's LAN network is 192.168.2.0, and Router B's LAN network is 192.168.1.0. When we set a static route on Router A and access 192.168.1.X, the communication will automatically be routed to Router B.

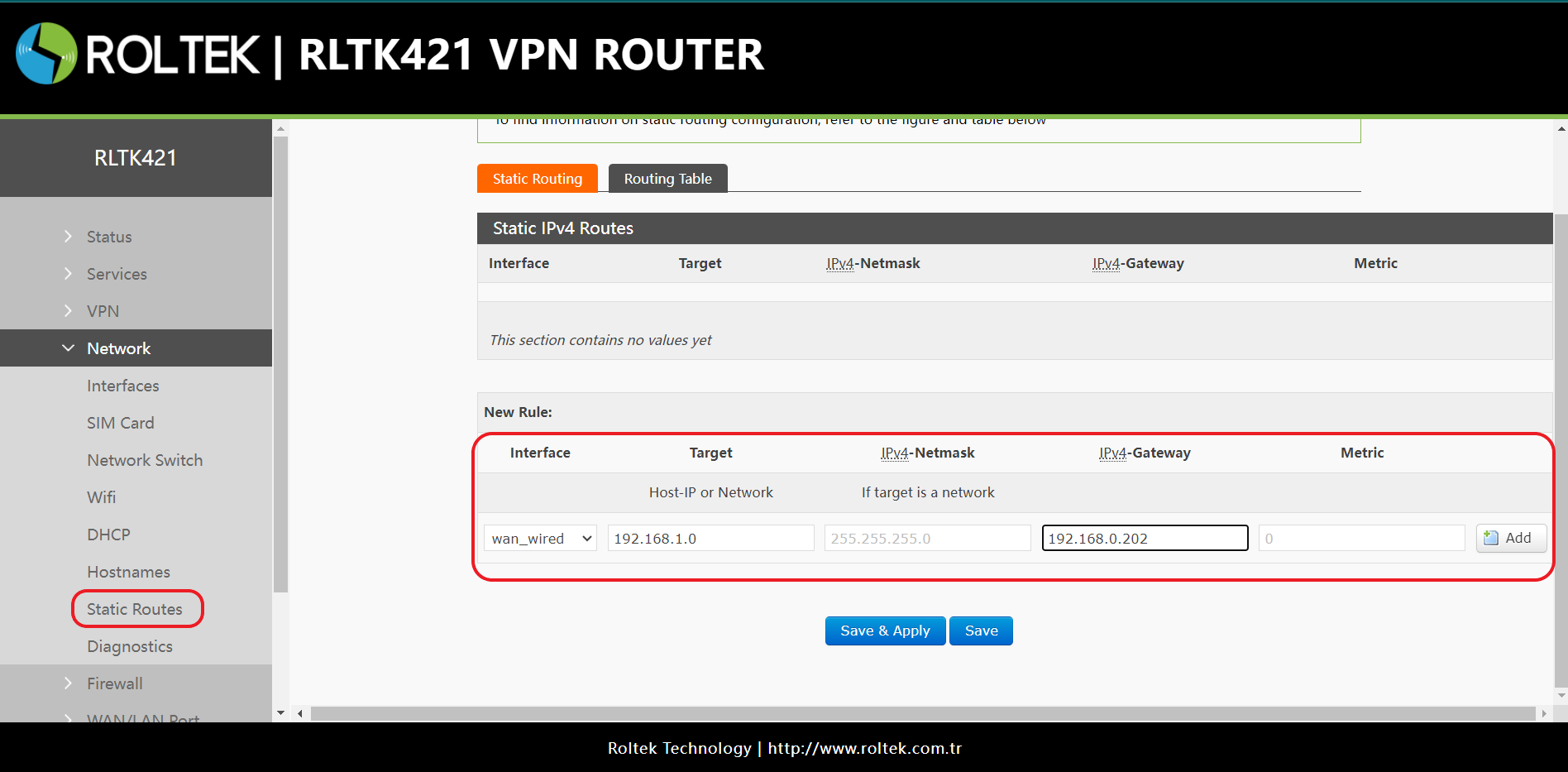

Router A:

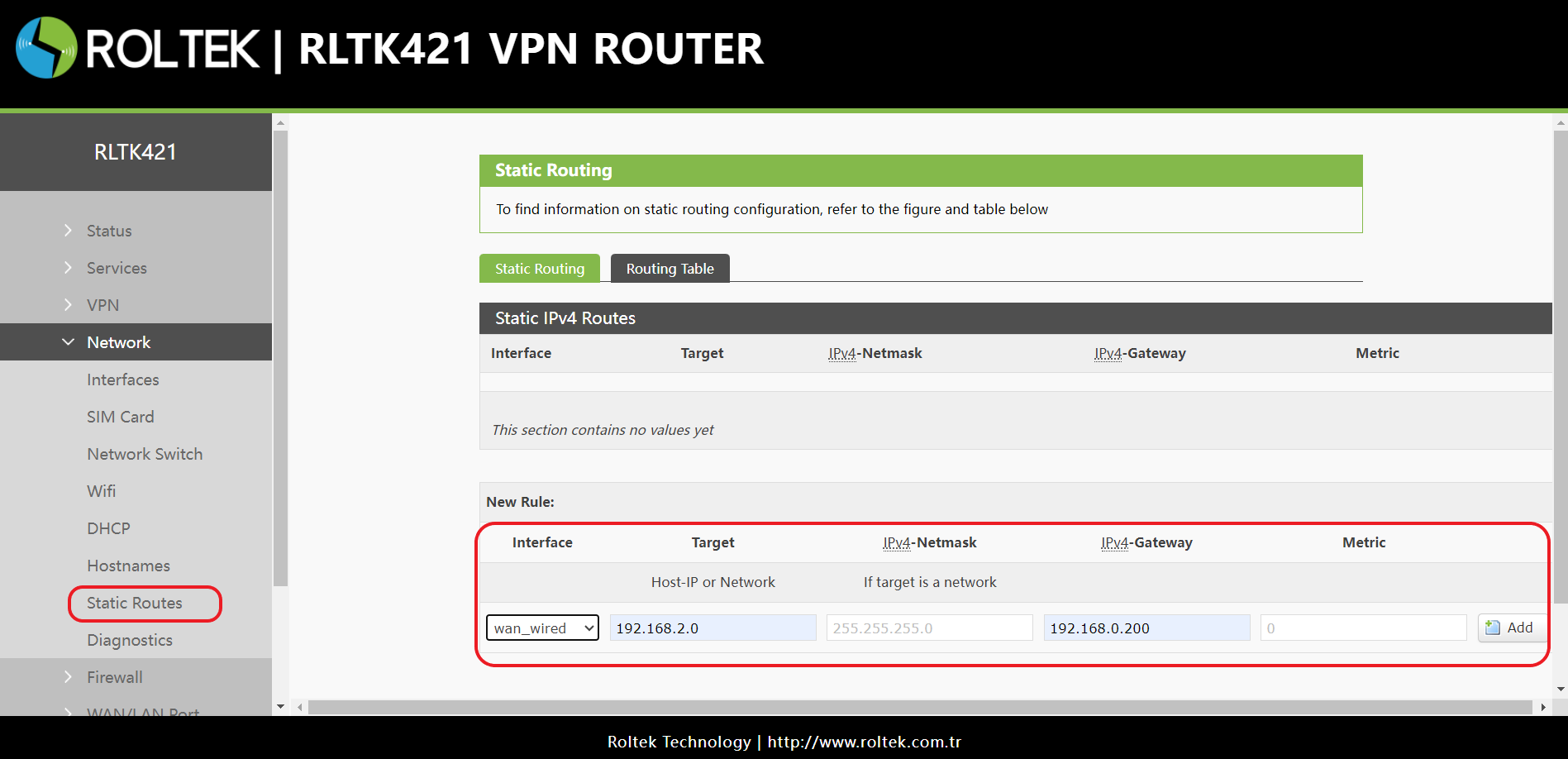

Router B:
After setting all parameters, restart the device.
