Payload

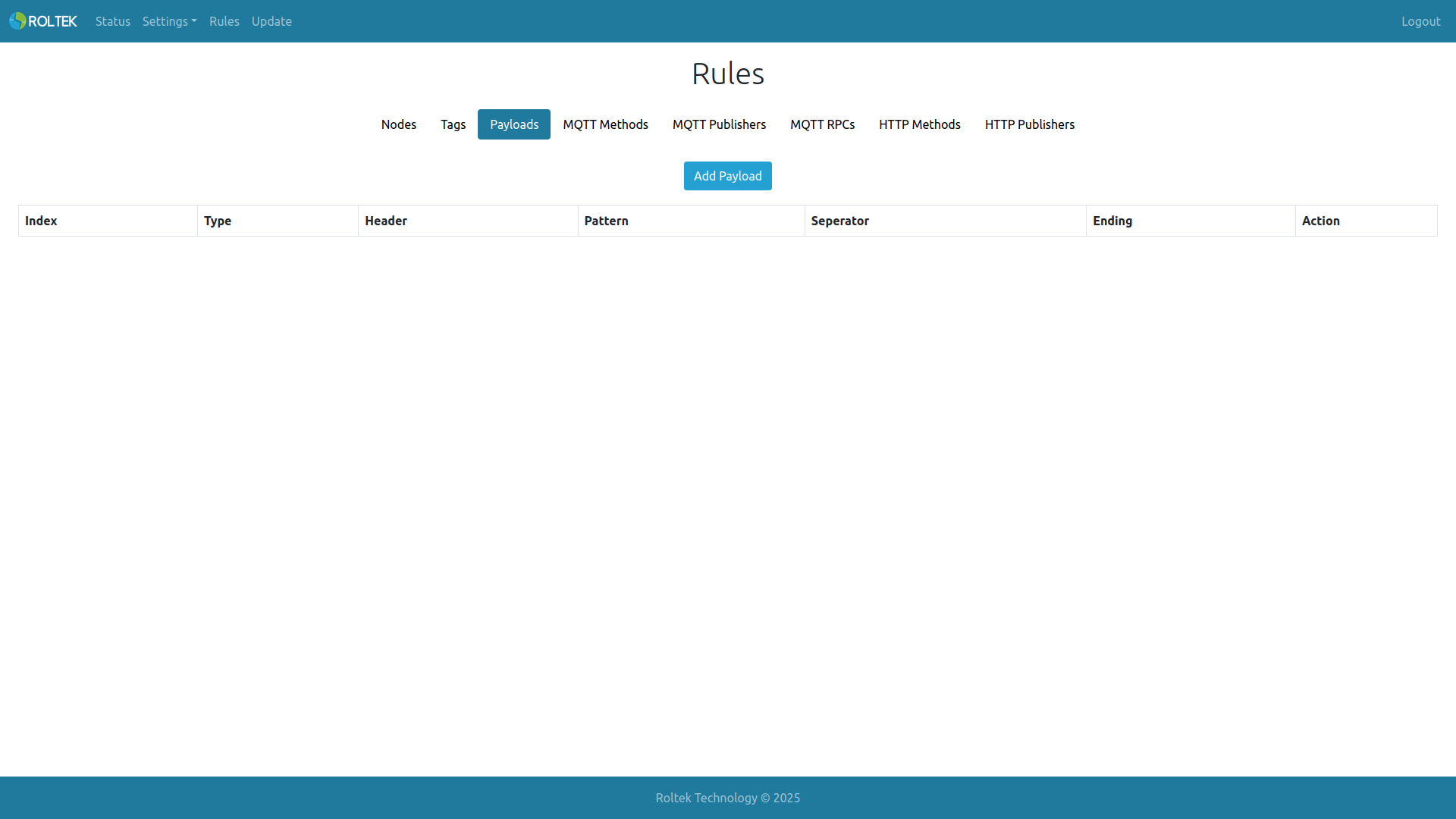

Rules and Payloads tabs redirect to this page.

The maximum configurable Payload count is 32.

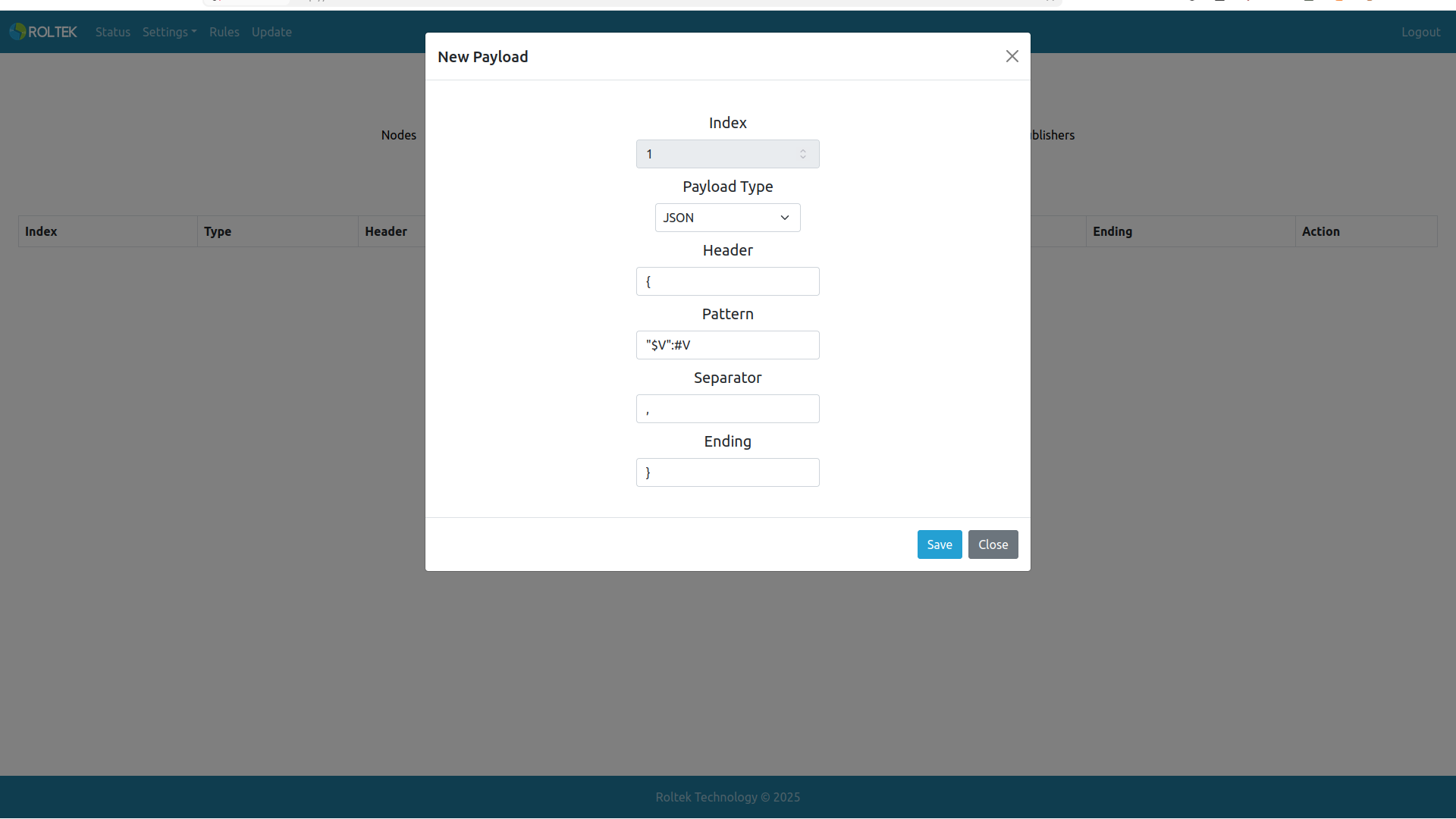

Users can define payloads for tags to be sent by clicking the Add Payload button.

• Index: The index value of the payload. Automatically assigned by the device, cannot be changed.
• Payload Type: The type of payload. Options:
  • ASCII
  • Binary
  • JSON
• Header: The start symbol of the payload (Up to 127 characters).
• Pattern: Symbols for data and data type identification (Up to 127 characters). Options:
  • $D WiFi AP SSID (DC620_DUAL-XXXXXXXXXX)
  • $E Ethernet IP address
  • $F Software version
  • $M Model name (DC620_DUAL)
  • $N Device name (default value DC620_DUAL)
  • $R Wi-Fi connection's RSSI value (dBm)
  • $S Serial number
  • $T Unix epoch time value (seconds)
  • $U Tag unit
  • $V Tag name
  • #V Tag value
  • $W WiFi Station IP address
• Separator: Separator symbol (Up to 127 characters).
• Ending: The end symbol of the payload (Up to 127 characters).
