MQTT Method

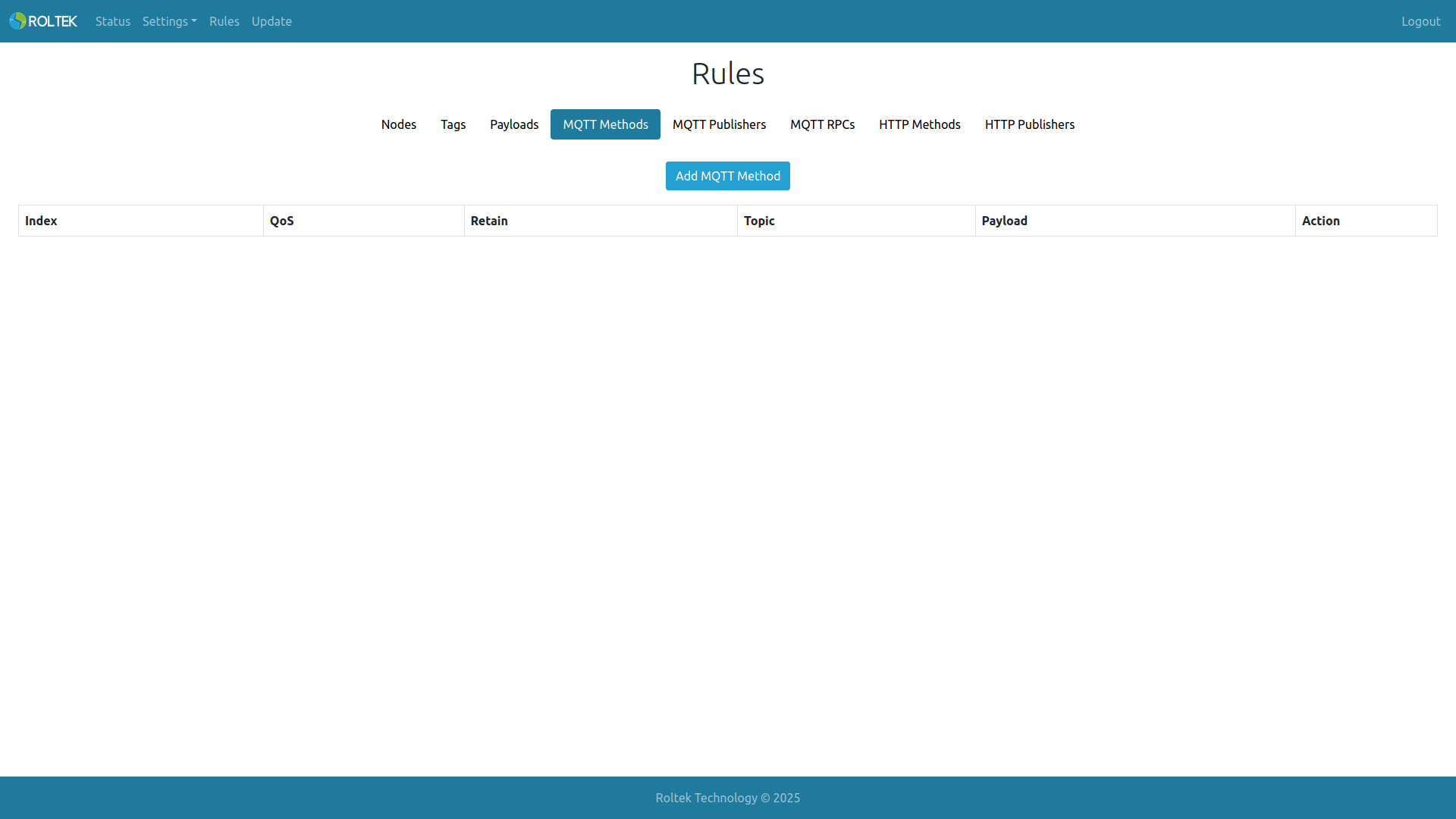

Rules, MQTT Methods tabs redirect to this page.

MQTTMethod-DC620-DUAL

The maximum configurable MQTT method count is 32.

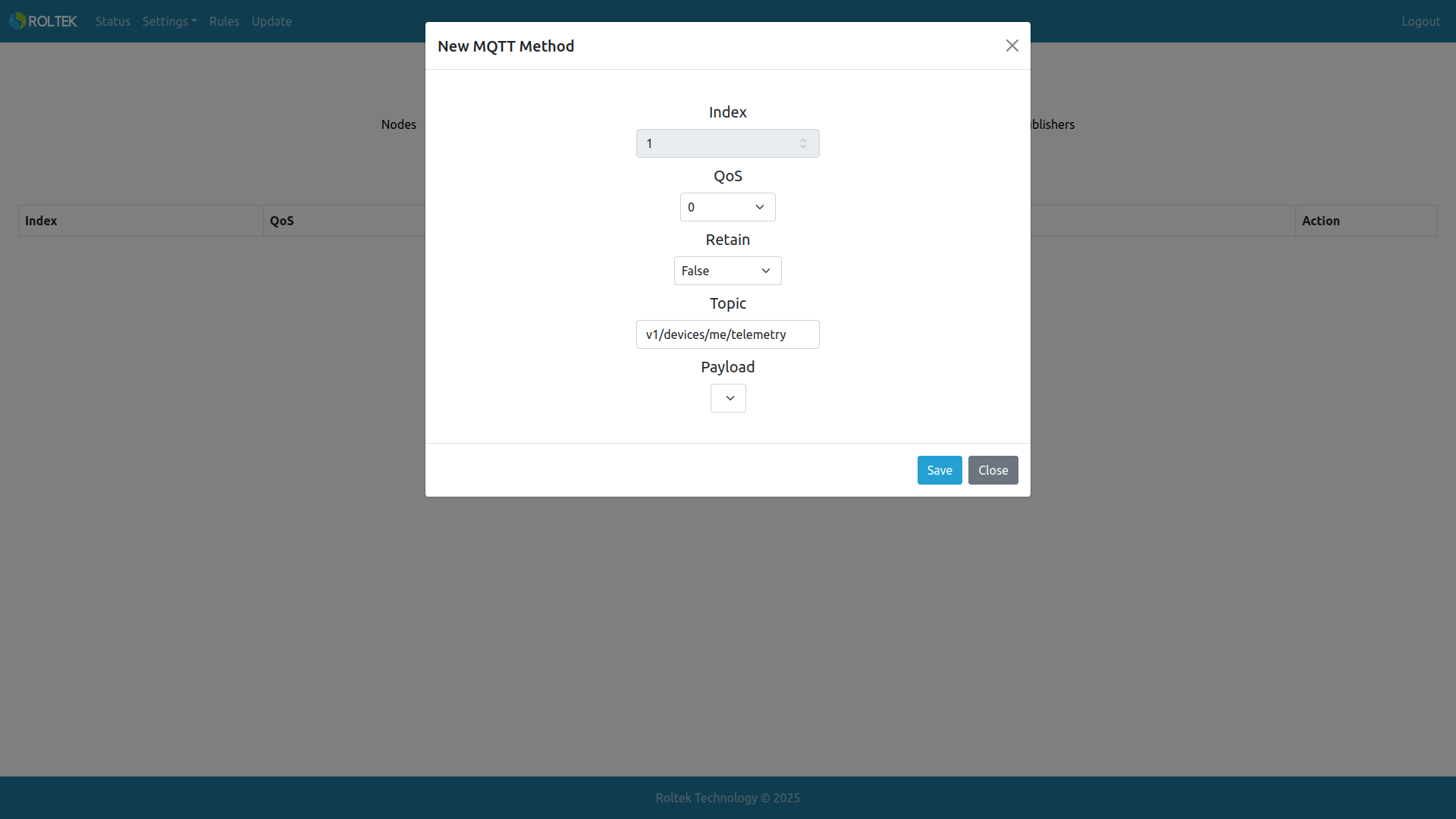

Users can define an MQTT method to send tags to the MQTT broker by clicking the Add MQTT Method button.

AddMQTTMethod-DC620-DUAL

  • Index: The index value of the MQTT Method. Automatically assigned by the device, cannot be changed.
  • QoS: The Quality of Service value of the MQTT Method. Options:
    • 0
    • 1
    • 2
  • Retain: The retain value of the MQTT Method. Options:
    • True
    • False
  • Topic: The topic for sending messages (Maximum length 128).
  • Payload: The payload defined in the MQTT Payloads section.
