HTTP Publisher

Rules, HTTP Publishers tabs redirect to this page.

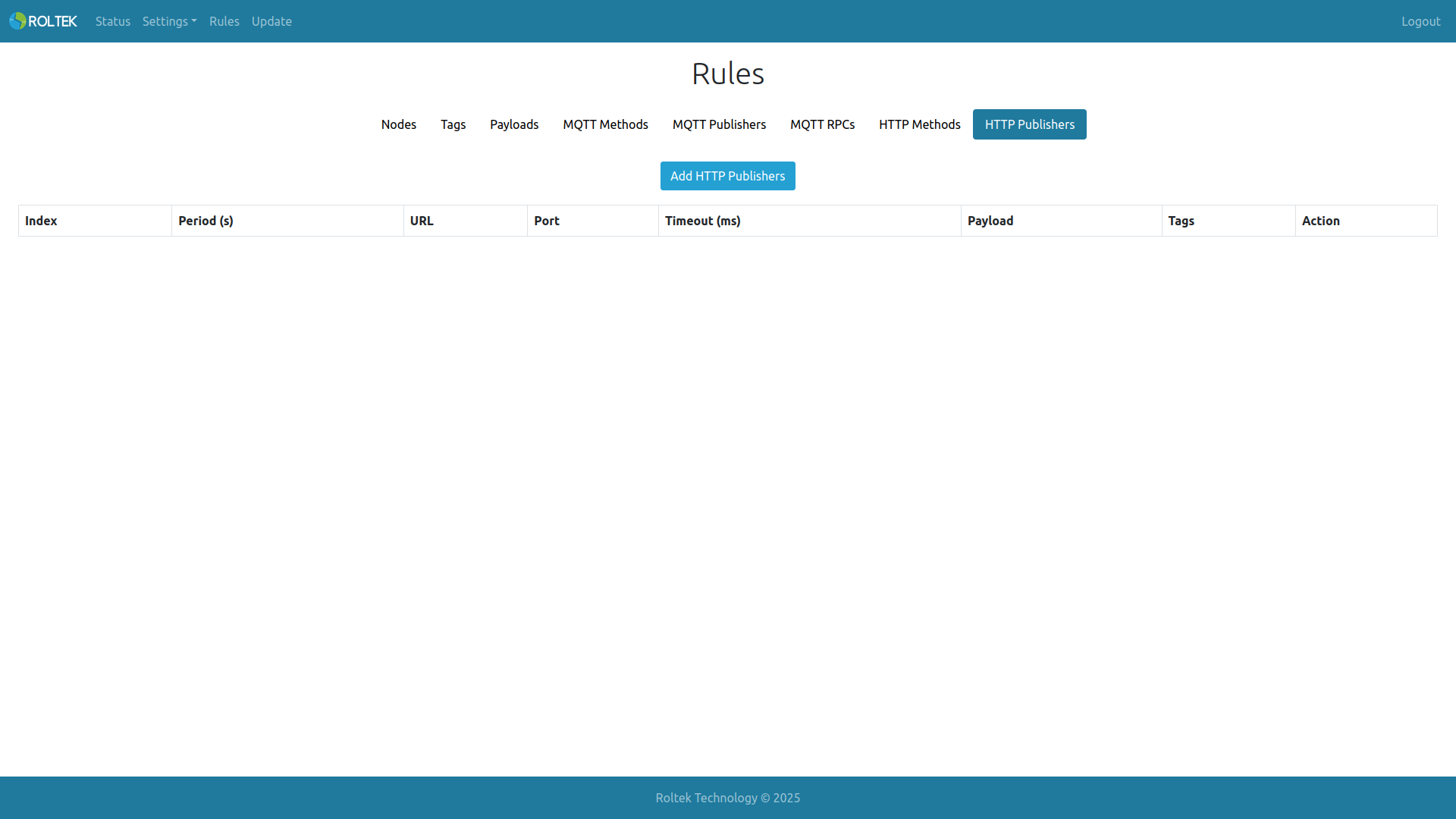

HTTPPublisher-DC620-DUAL

The maximum configurable HTTP Publisher number is 32.

Users can define an HTTP Publisher by clicking the Add HTTP Publisher button.

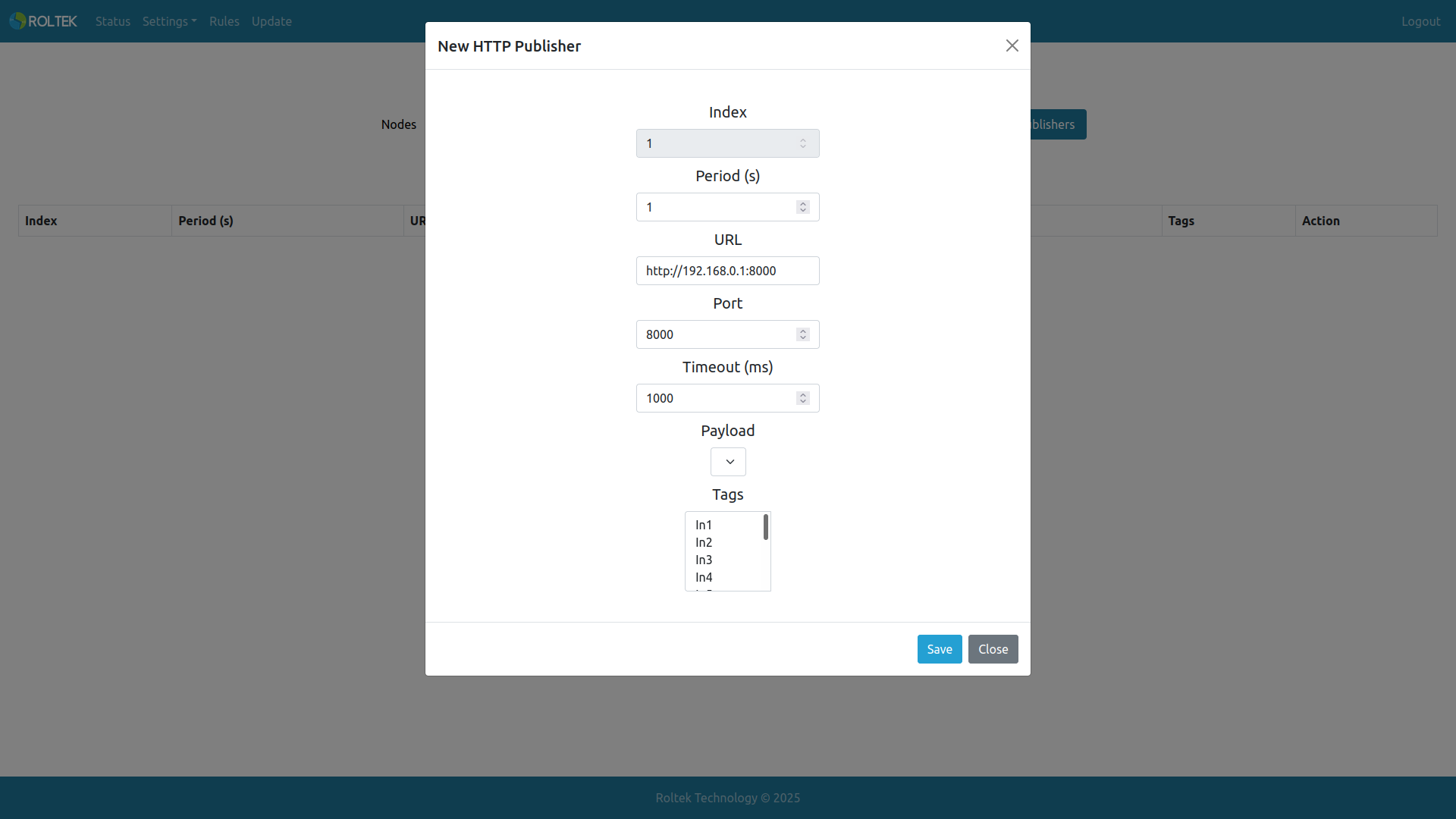

AddHTTPPublisher-DC620-DUAL

  • Index: HTTP Publisher index value. Automatically assigned by the device, cannot be changed.
  • Period (seconds): The interval at which messages will be sent to the HTTP Server.
  • URL: The HTTP server URL to which the message will be sent (Up to 127 characters).
  • Port: HTTP Server Port number.
  • Timeout: The timeout duration for the HTTP Post action. The unit is milliseconds.
  • Payload: Defined in the Payload section.
  • Tags: Tags to be sent to the HTTP Server. Multiple tag options are available.
