HTTP Method

Rules, HTTP Methods tabs redirect to this page.

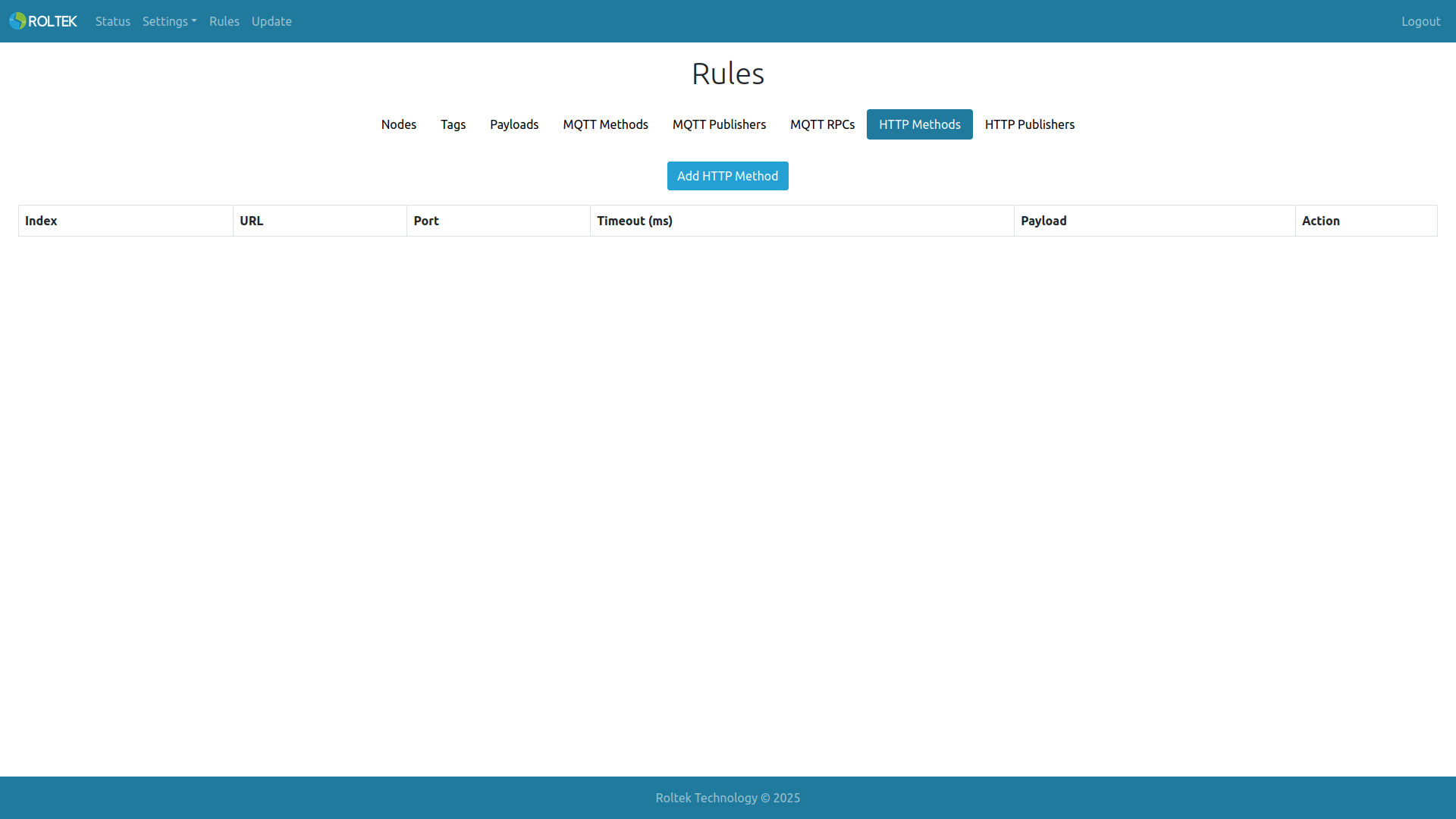

HTTPMethod-DC620-DUAL

The maximum configurable HTTP Method count is 32.

Users can define an HTTP Method by clicking the Add HTTP Method button.

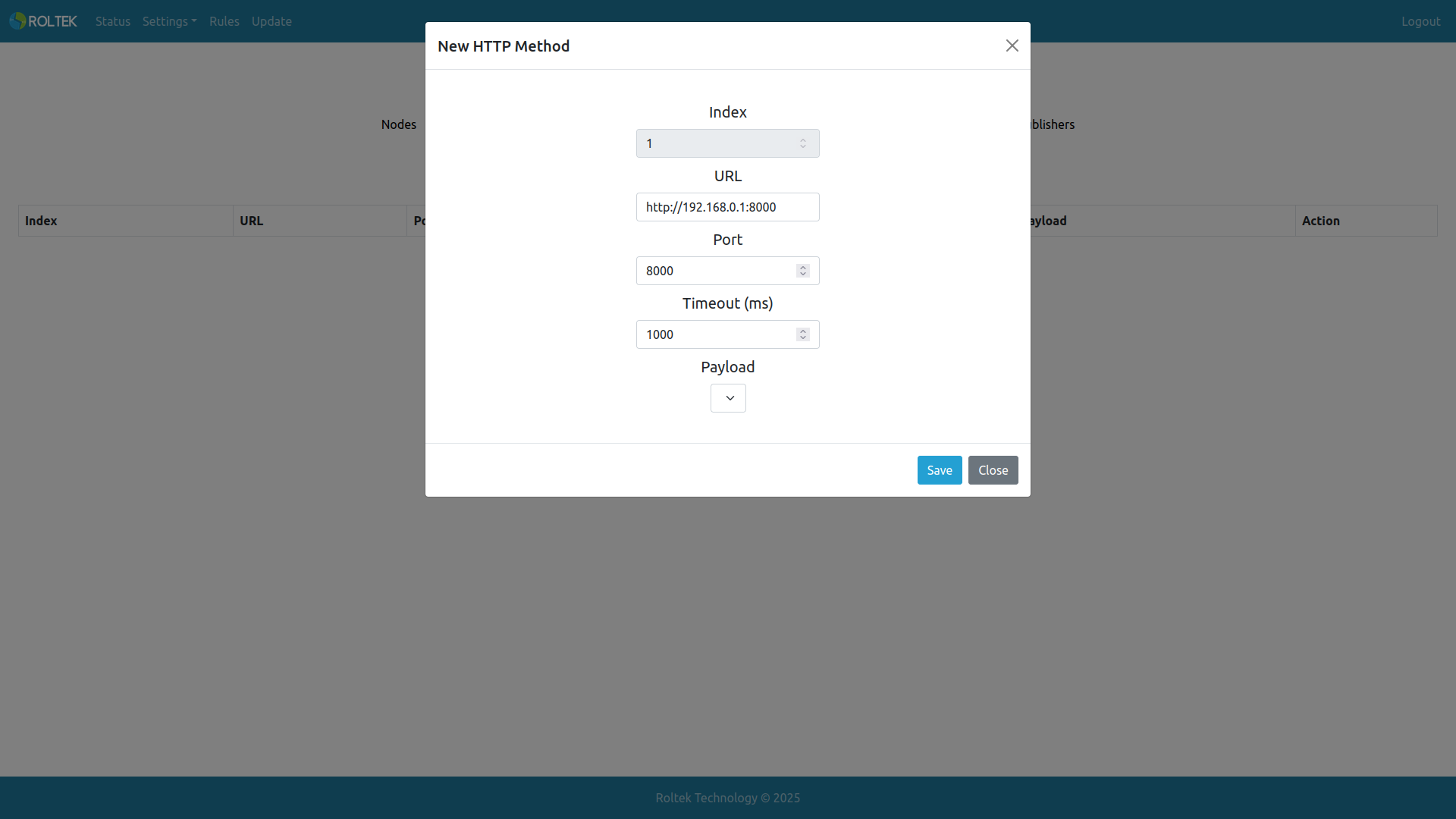

AddHTTPMethod-DC620-DUAL

  • Index: HTTP Method index value. Automatically assigned by the device, cannot be changed.
  • URL: The HTTP server URL to which the message will be sent (Up to 127 characters).
  • Port: HTTP Server Port number.
  • Timeout: The timeout duration for the HTTP Post action. The unit is milliseconds.
  • Payload: Defined in the Payload section.
