Nodes
Rules, Nodes tabs redirect to this page.

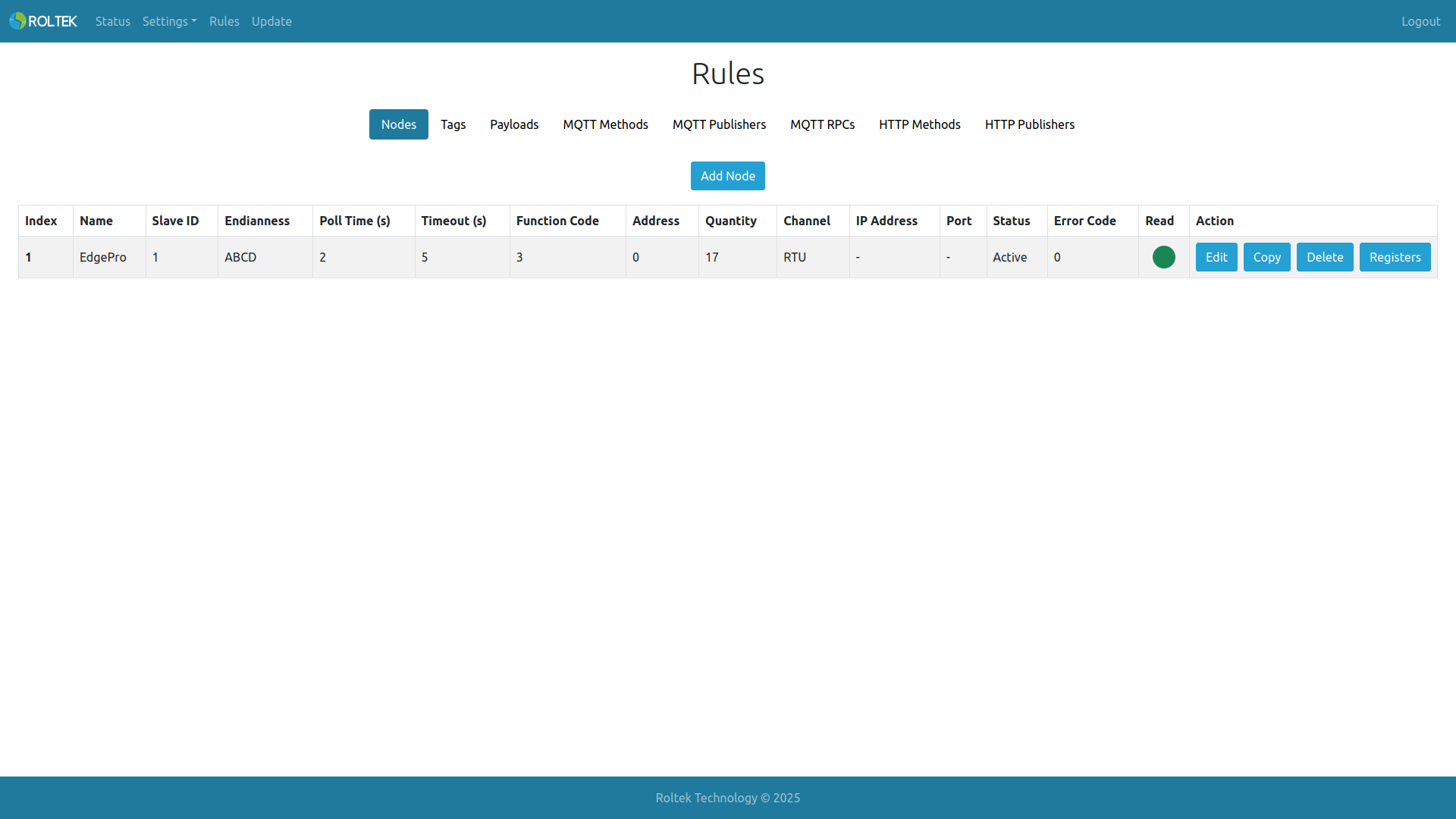

Node is an external Modbus device. In the default configuration, there is a node device called EdgePro. EdgePro is the device itself, its own node, and reads values from the device's own registers.
Important: The Slave ID from the Modbus Configuration in the Devices tab and the Device ID from RF Modems must have the same value as the Slave ID of the EdgePro Node.
The maximum configurable number of Nodes is 10.

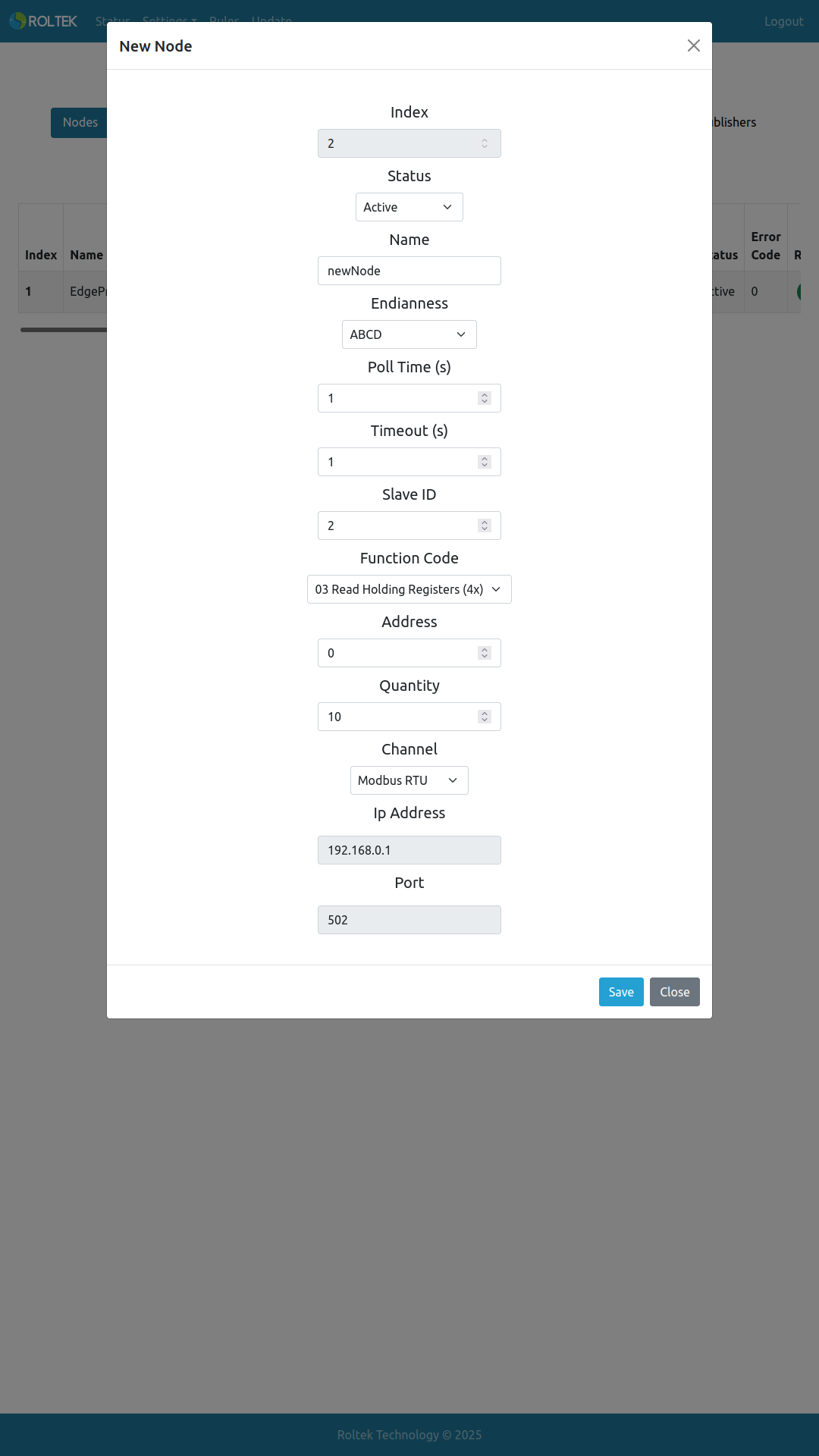

Users can add new nodes by clicking the Add Node button.
| Parameter | Description | Values |
|---|---|---|
| Index | The index value of the node. Automatically assigned by the device, cannot be changed. | |
| Status | The status of the node. | Active Passive |
| Name | The name of the node (Maximum length 16) | |
| Endianness | The endianness of the device. | ABCD DCBA BADC CDAB |
| Poll time (seconds) | The interval for reading data from the Modbus device. | |
| Timeout (seconds) | The timeout duration while reading data from the device. | |
| Slave ID | The Slave ID of the Modbus RTU or Modbus TCP device. | |
| Function Code | The function codes required to read data from the Modbus RTU or Modbus TCP device. | 01 Read Coils (0x) 02 Read Discrete Inputs (1x) 03 Read Holding Registers (4x) 04 Read Input Registers(3x) |
| Address | The starting address of the registers to be read. | |
| Quantity | The number of registers to be read. | |
| Channel | Connection type. | Modbus RTU Modbus TCP/IP |
| IP Address | If the Modbus TCP/IP option is selected, the device's IP address must be entered. | |
| Port | If the Modbus TCP/IP option is selected, the device's port number must be entered. |
