HTTP Publisher

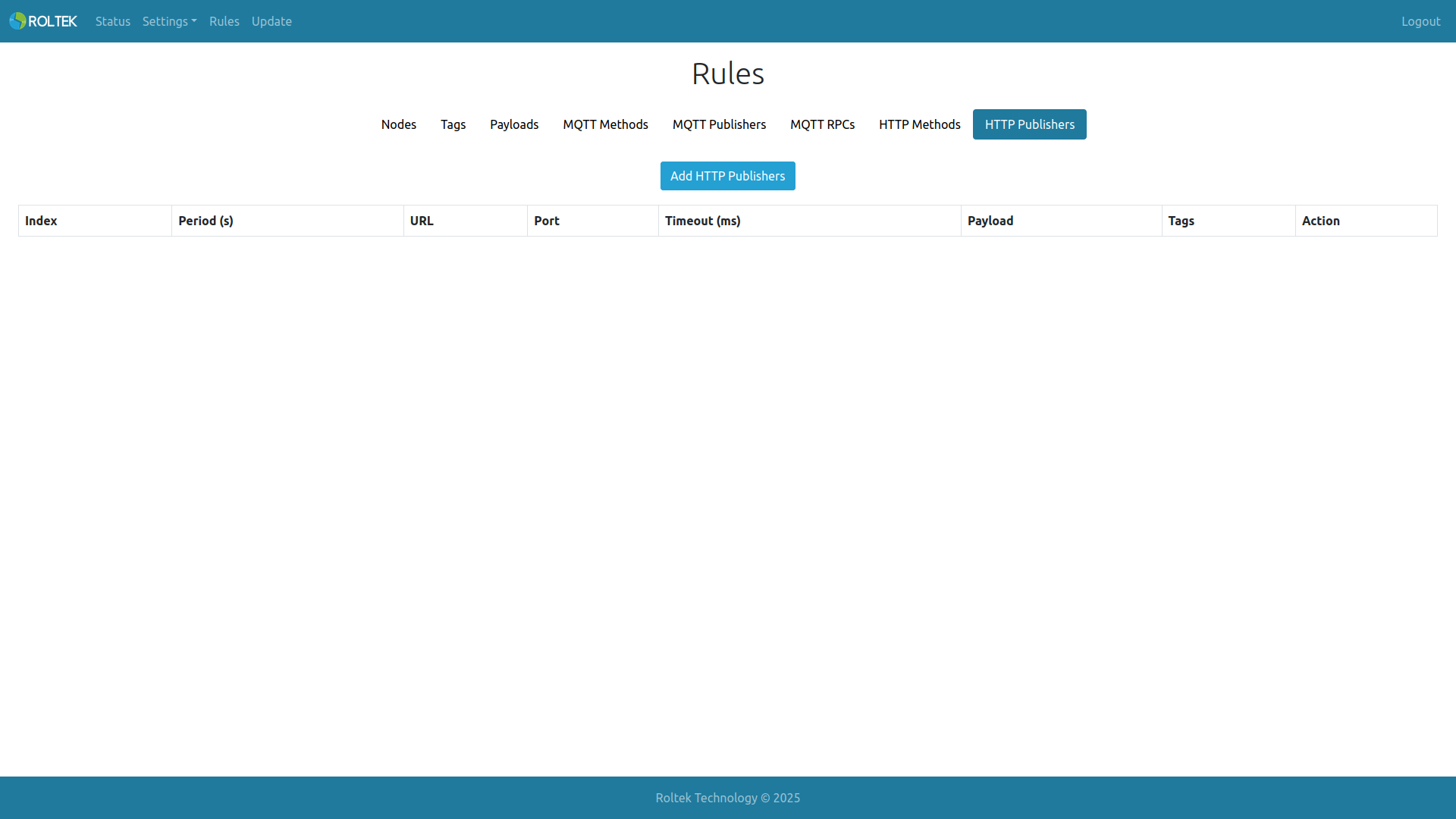

Rules, HTTP Publishers tabs redirect to this page.

HTTPPublisher-8421

The maximum configurable HTTP Publisher count is 10.

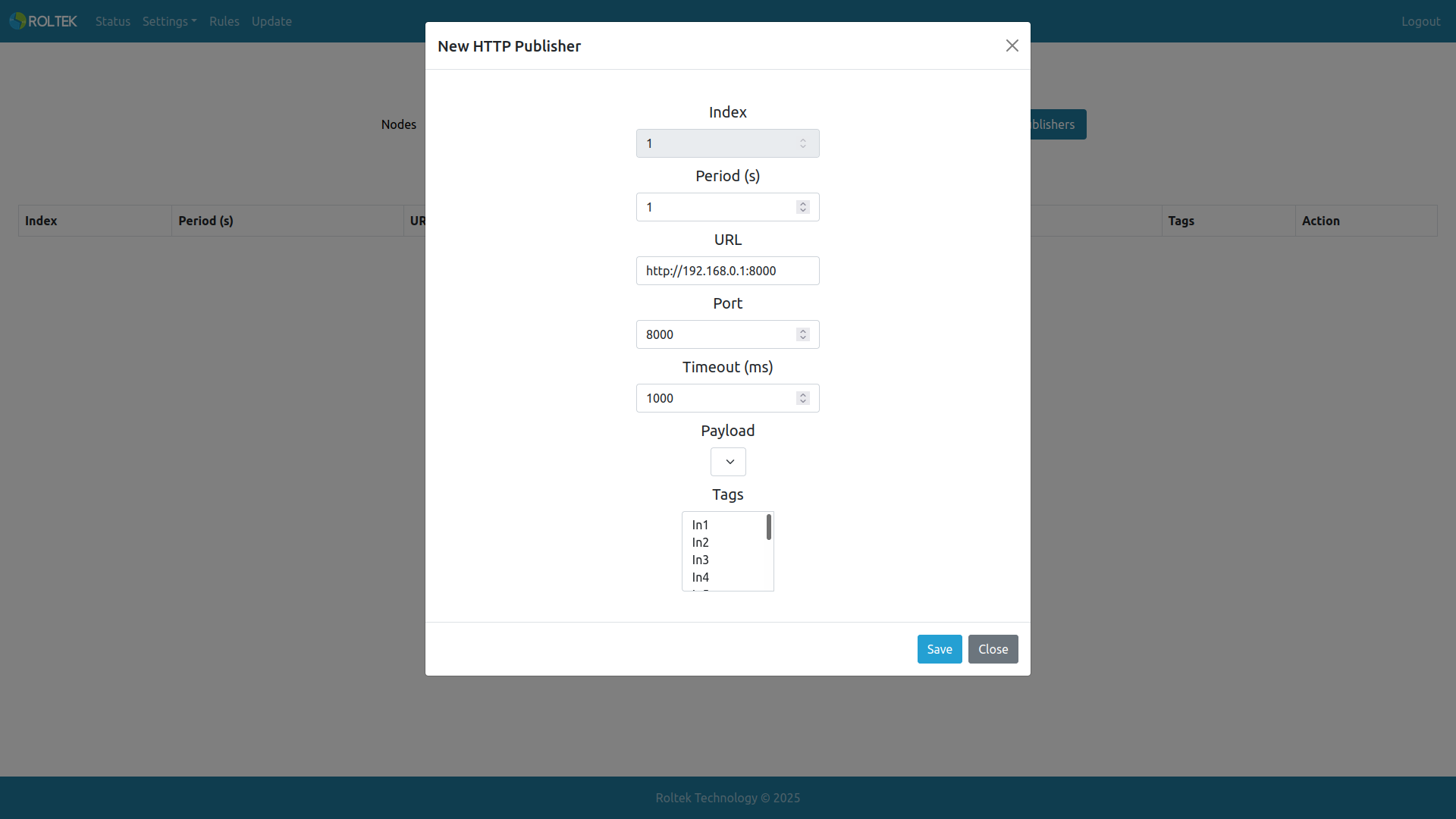

Users can define an HTTP Publisher by clicking the Add HTTP Publisher button.

AddHTTPPublisher-8421

  • Index: HTTP Publisher index value. Automatically assigned by the device, cannot be changed.
  • Period (seconds): The interval at which messages will be sent to the HTTP Server.
  • URL: The HTTP server URL to which the message will be sent (Maximum 127 characters).
  • Port: HTTP Server Port number.
  • Timeout: The timeout duration for the HTTP Post action. The unit is milliseconds.
  • Payload: Defined in the Payload section.
  • Tags: Tags to be sent to the HTTP Server. Multiple tag selection is possible.
