Web Interface

How to Connect to the Device​

You can connect to the device interface using either Ethernet or Wi-Fi.

To connect to the device using Ethernet, the user's computer IP address must be reconfigured to be in the same IP block as the device and different from the device's IP address. The default settings of the device are as follows:

IP ModeStatic IP Address
Default IP192.168.0.2
Subnet Mask255.255.255.0
Default Gateway192.168.0.1

To connect to the device using Wi-Fi, you can search for the SSID EDGE_PRO-XXXXXXXXXX (where X represents the device's serial number) through a mobile device or computer. The password is the device's serial number. The modem will automatically assign an IP address to the client device. The default settings of the device are as follows:

Wi-Fi ModeAP
IP ModeStatic IP Address
Default IP192.168.4.1
Subnet Mask255.255.255.0
Default Gateway192.168.4.1

If the hardware setup and connection part is successfully completed, searching for the modem's IP address (192.168.0.2 for Ethernet connection, 192.168.4.1 for Wi-Fi connection) or http://edge_pro-XXXXXXXXXX.local (where X represents the device's serial number) in the web browser's search bar will redirect the browser to the modem's login page.

Important: Only one client device can connect to the AP, and only one client user can log into the interface.

Usernameadmin
Passwordadmin

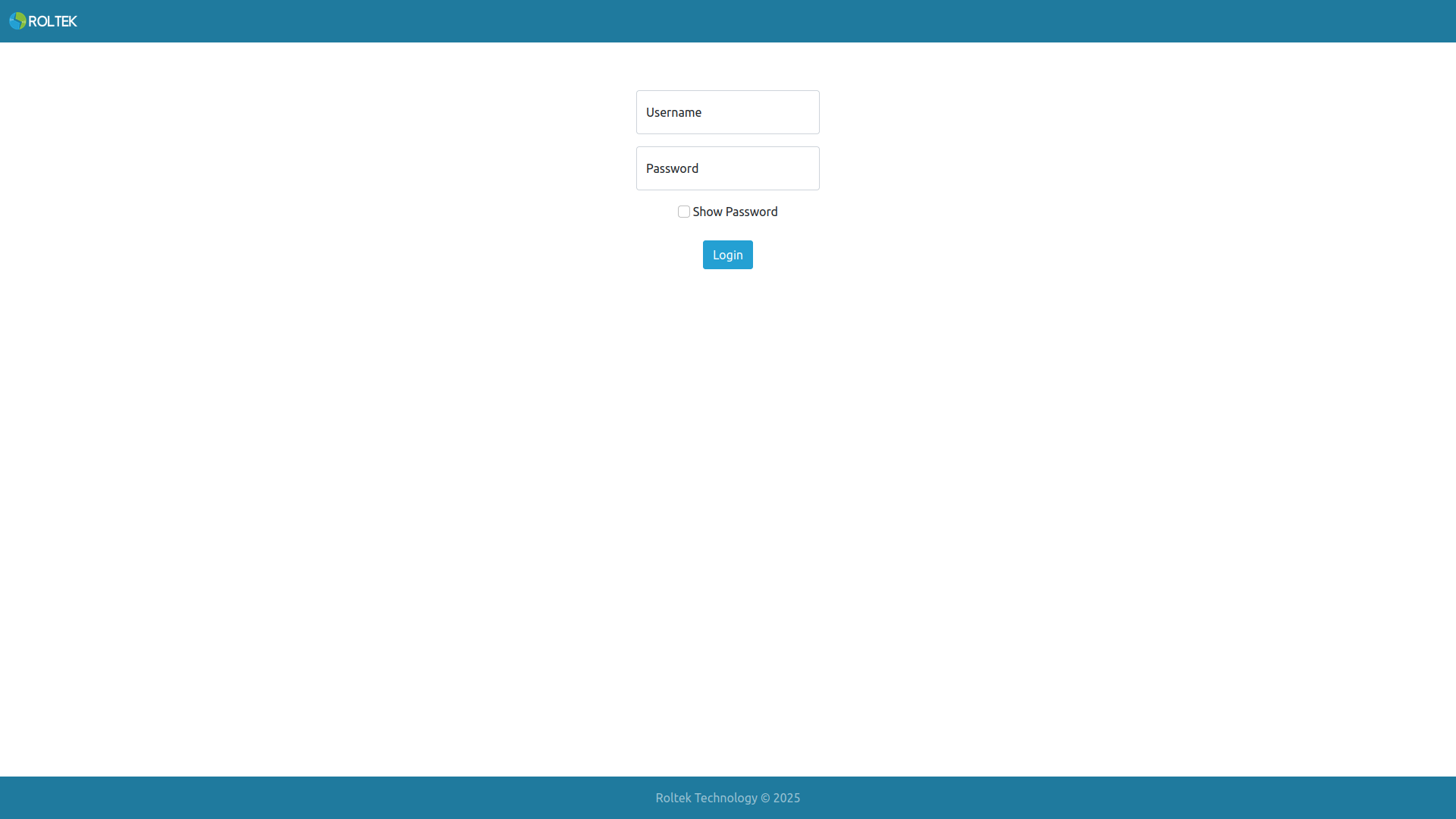

Login-8421

If the login is successful, the Status page should open.

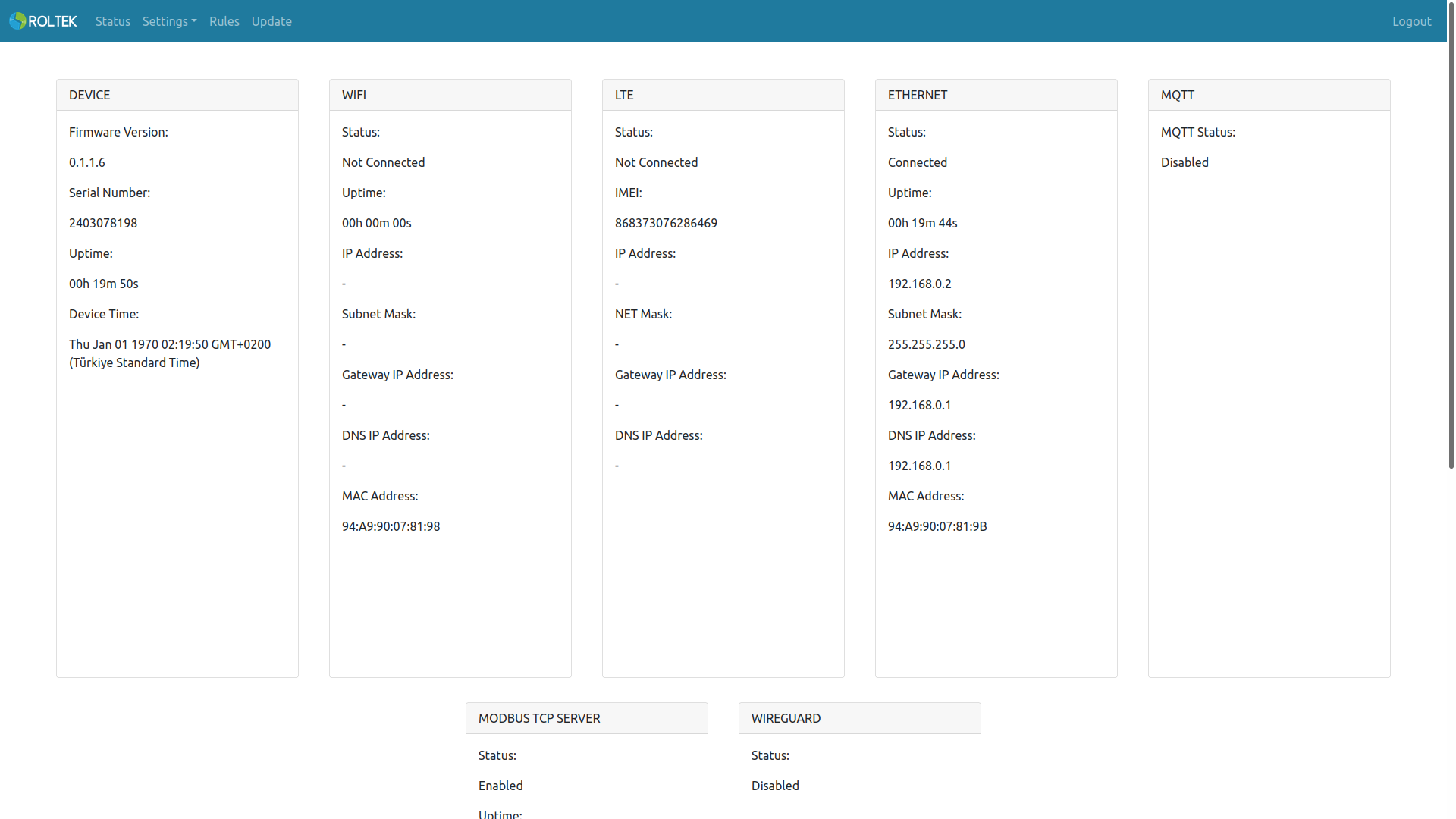

Status-8421

On this screen, the status of the device can be observed. The following settings can be configured under the relevant headings in the Settings tab:

  • Device
  • WiFi
  • LTE
  • Ethernet
  • Modbus
  • MQTT
  • Mail
  • HTTP Client
  • IO
  • Date&Time
  • Firewall
  • Ping
  • IEC 62056-21
  • SMS
  • Wireguard

In the Devices tab, settings related to adding other ModProBus devices to the RF network can be configured.

In the Rules tab, other Modbus devices, MQTT publishers, and MQTT RPC can be configured.

In the Test tab, the RF connections of other ModProBus devices can be tested.

In the Update tab, the device's firmware can be updated.
