Payload

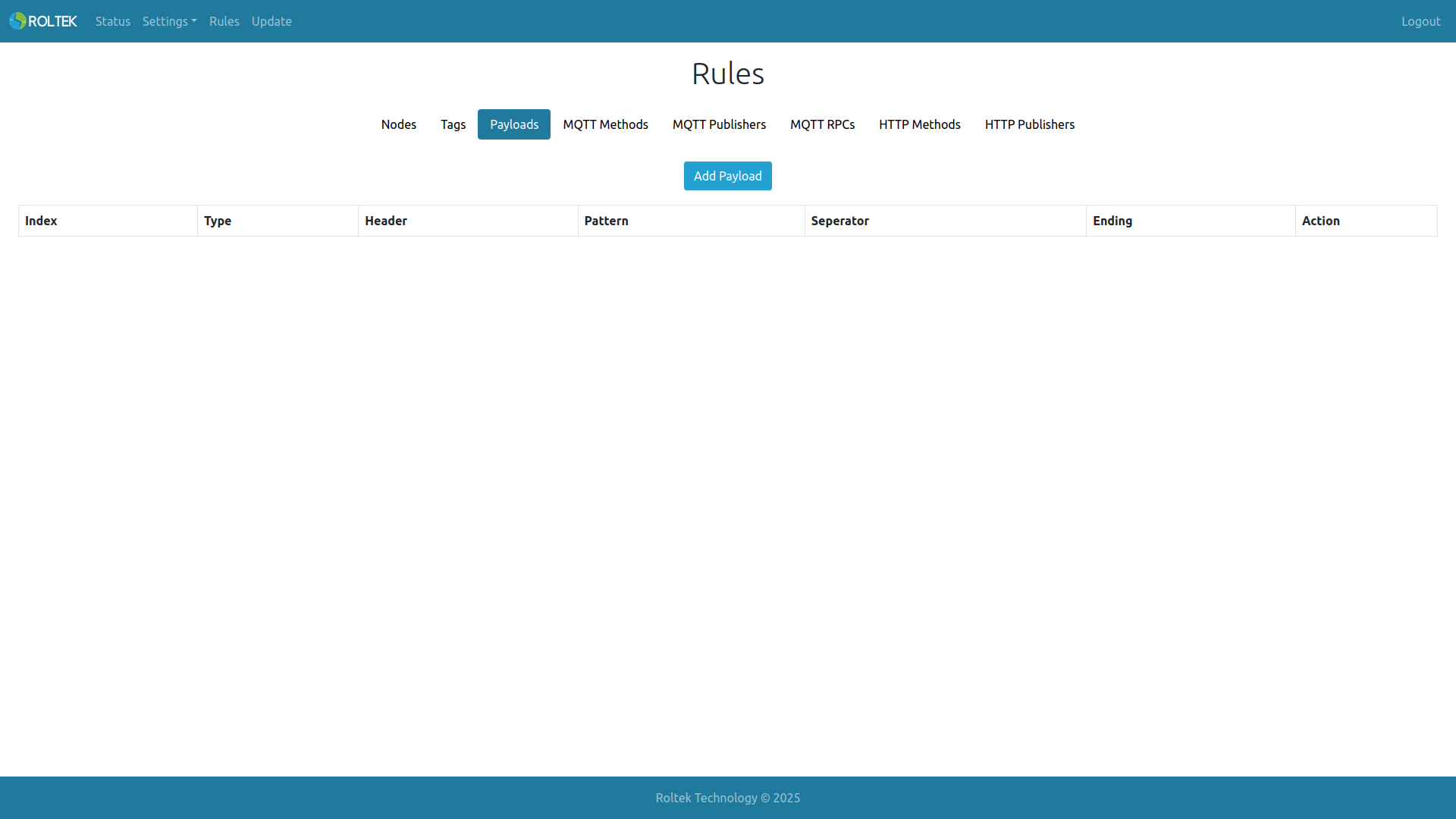

Rules and Payloads tabs redirect to this page.

The maximum configurable Payload count is 10.

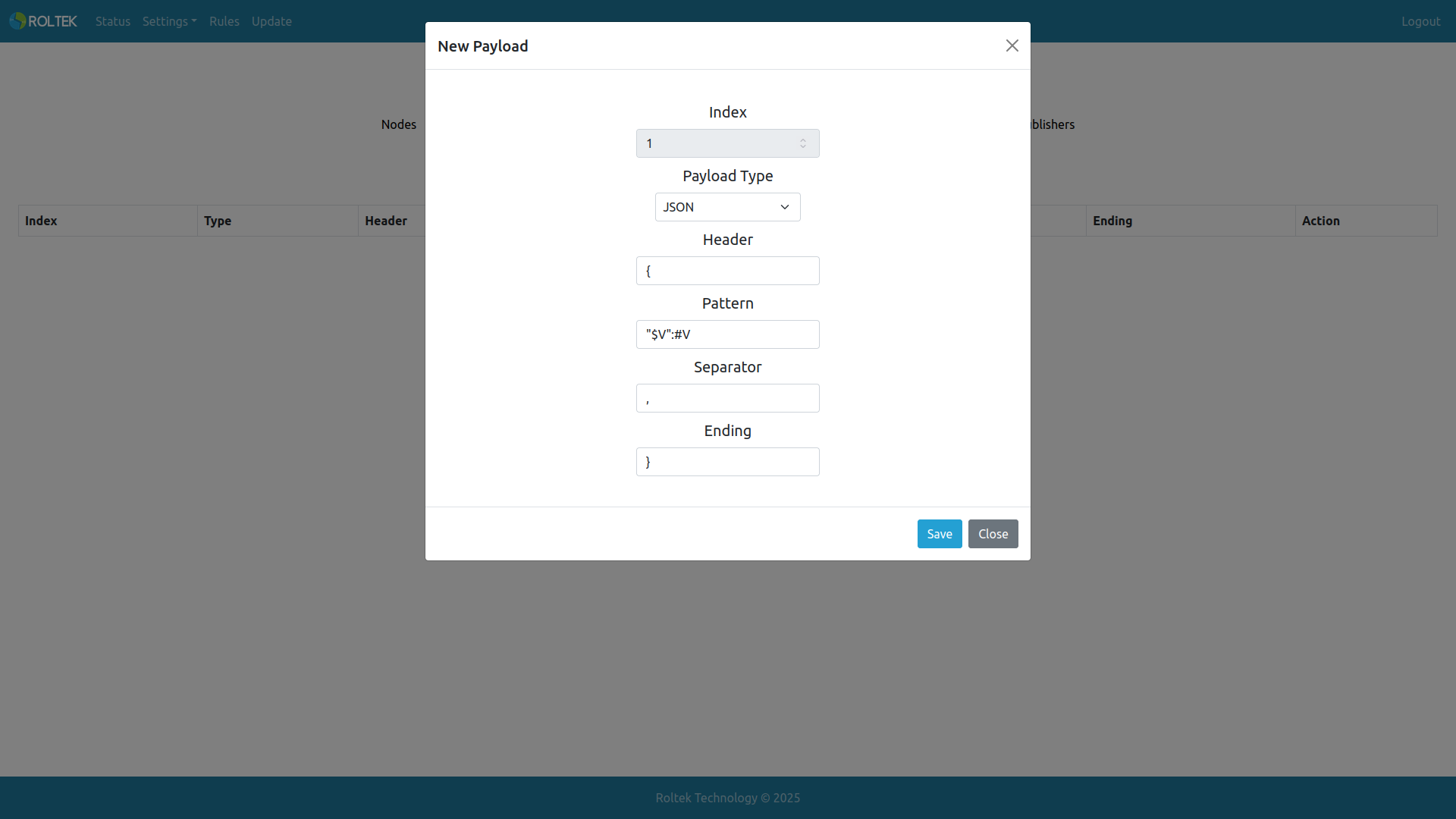

Users can define payloads for the tags to be sent by clicking the Add Payload button.

• Index: The index value of the payload. Automatically assigned by the device, cannot be changed.
• Payload Type: The type of payload. Options:
  • ASCII
  • Binary
  • JSON
• Header: The start symbol of the payload (Maximum 127 characters).
• Pattern: Data and data type identification symbols (Maximum 127 characters). Options:
  • $A LTE IP address
  • $D WiFi AP SSID (EDGE_PRO-XXXXXXXXXX)
  • $E Ethernet IP address
  • $F Software version
  • $G Current connection mode (GSM or LTE)
  • $I IMEI number of the LTE module.
  • $M Model name (EDGE_PRO)
  • $N Device name (default value EdgePro_LTE8421)
  • $O Operator name
  • $R RSSI value of the LTE connection (dBm)
  • $S Serial number
  • $T Unix epoch time value (seconds)
  • $U Tag unit
  • $V Tag name
  • #V Tag value
  • $W WiFi Station IP address
• Separator: Separator symbol (Maximum 127 characters).
• Ending: The end symbol of the payload (Maximum 127 characters).
