Serial Port Settings

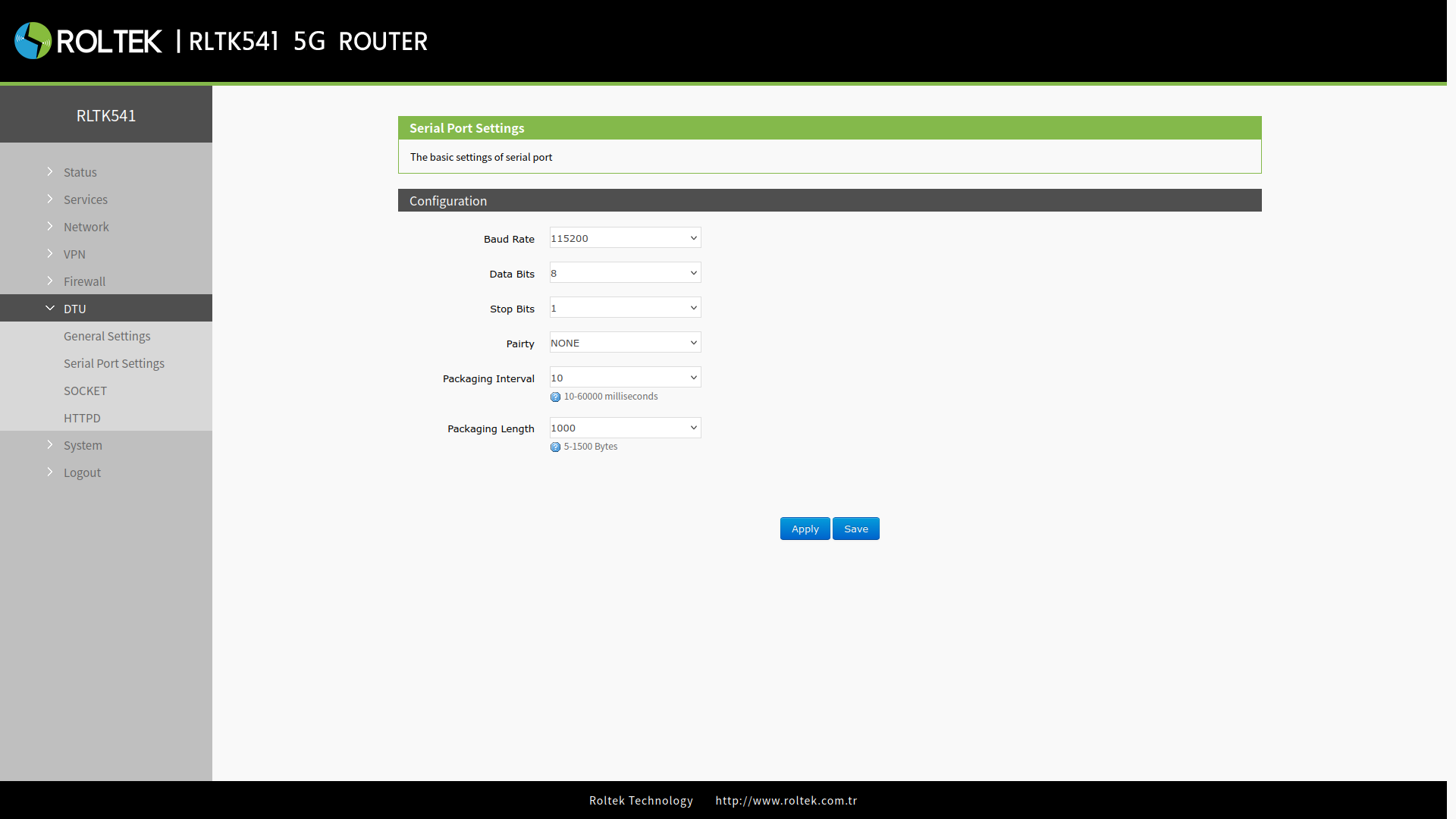

For the device's serial port settings:
- DTU
- Serial Port Settings
follow the menus.
The serial communication parameters of the RLTK541 must be compatible with other RS485 serial devices. Otherwise, the devices will not be able to communicate with each other. Therefore, the baud rate, data bits, stop bits, and other serial communication parameters of the other device must be the same as those of the RLTK541. This is important for ensuring accurate and smooth serial data transmission.
| Parameter | Description | Default Value |
|---|---|---|
| Baud rate | Supports speeds of 1200/2400/4800/9600/19200/38400/57600/115200/230400/460800 | 115200 |
| Data bits | 7 / 8 | 8 |
| Stop bits | 1 / 2 | 1 |
| Parity | NONE/ODD/EVEN | NONE |
| Packaging interval (ms) | 10–60000 | 10 |
| Packaging length (byte) | 5–1500 | 1000 |
Operating Mechanism
Triggered by Time:
When the RLTK541 receives data over UART, it continuously checks the duration between two consecutive bytes. If this interval duration is equal to or greater than a certain "time threshold," it is considered that a frame has been completed; otherwise, data is received until it is equal to or greater than the byte value set as the packet length (default is 1000 bytes). This frame is sent to the network as a TCP or UDP packet. The "time threshold" here refers to the duration between packets. The adjustable range is between 10 ms and 60000 ms. The factory default is 10 ms.
This parameter can be set with the AT command: AT+UARTFT=<time>.
Triggered by Length:
When the RLTK541 receives data over UART, it continuously checks the number of bytes received. If the number of bytes received is equal to a certain "length threshold," it is considered that a frame has been completed, and this frame is sent to the network as a TCP or UDP packet. The "length threshold" here refers to the packet length. The adjustable range is between 5 and 1500 bytes. The default value is 1000 bytes.
This parameter can be set with the AT command: AT+UARTFL=<length>.
