LAN Interface

To view the local network settings of the RLTK451:

  • Follow the menus
  • LAN

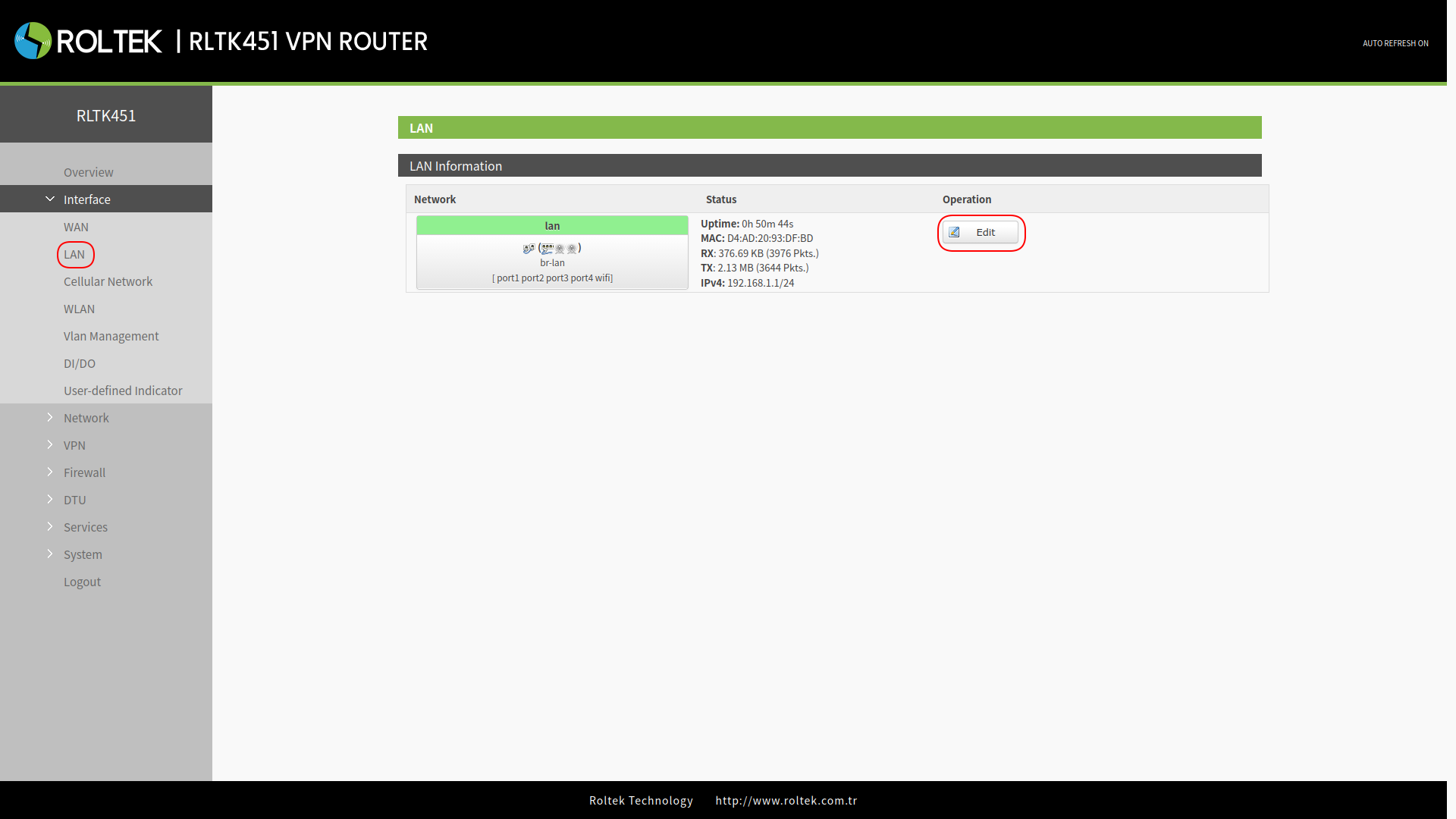

The LAN connection status will be visible in LAN. You can attempt to reconnect using the Connect button. You can configure the settings of the LAN network by clicking the Edit button.

LANInfo-451

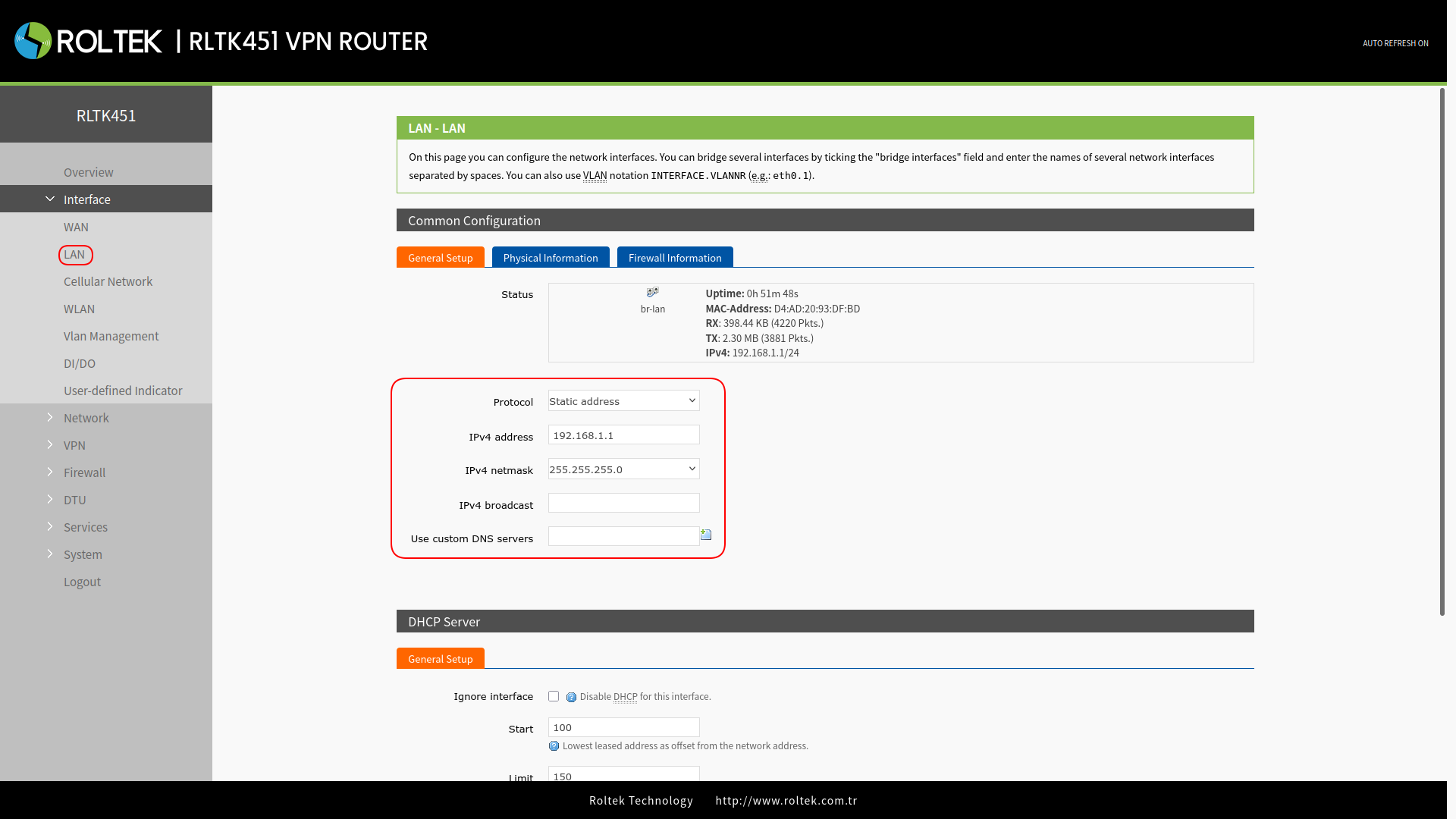

The section under Common Configuration is where the IP settings of the LAN network are configured. The section under DHCP Server contains the settings related to the device's DHCP server.

Common Configuration​

  • The LAN interface uses a static IP address of 192.168.1.1 and a subnet mask of 255.255.255.0 by default. These parameters can be changed.
  • The Wi-Fi interface (WLAN) and wired LAN are on the same LAN network.

After entering the settings, you should click the Save & Apply button to save the settings.

LANInfoEdit-451

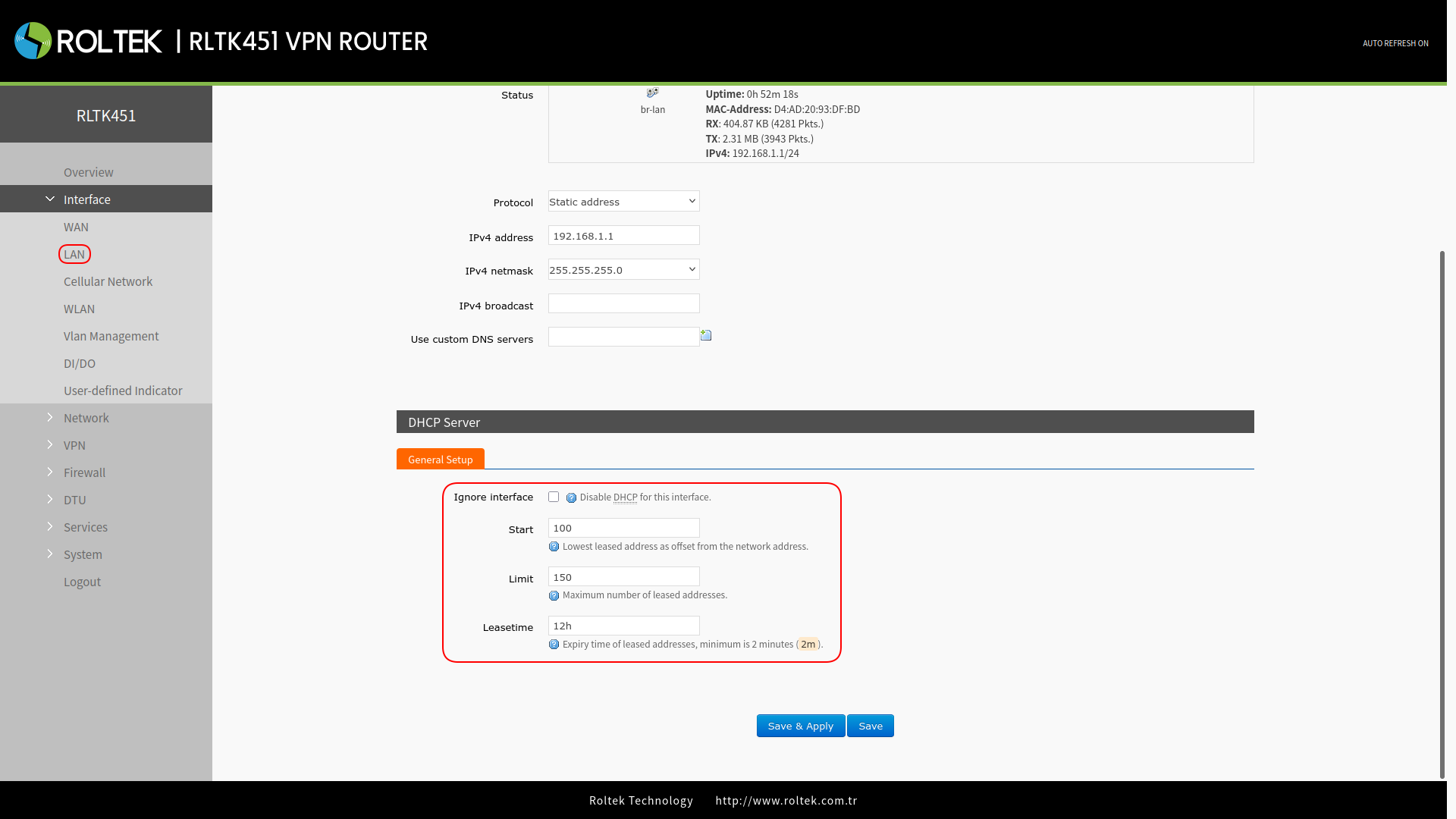

DHCP​

The DHCP server function is enabled by default, and all devices connected to the LAN port automatically receive an IP address (if the devices are set as DHCP Clients).

  • We can change the starting address and lease time of the DHCP Client.
  • DHCP addresses are assigned by default from 192.168.1.100 to 192.168.1.250.
  • Start: Starting address.
  • Limit: Number of assignable addresses.
  • Leasetime: Address lease time. The default lease time is 12 hours.

After entering the settings, you should click the Save & Apply button to save the settings.

LANInfoDHCP-451
