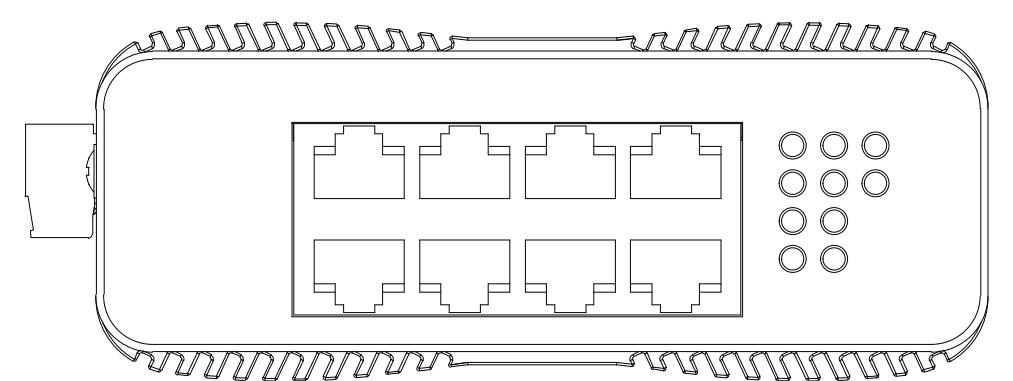

Device Interface

Power Supply

The device supports a DC 9.6-60V voltage input with redundant and extensive power supply support. When both power supplies are connected, only one power supply operates. In the event of a failure in the operating power supply, the device automatically switches to the other power supply, ensuring the switch operates without interruption.

Note: The switch can also operate properly when only one of the power supplies is connected.

The grounding screw is used for grounding the device.

Indicator

Status	Description
ON	The switch is operational.
Blinking	The switch is sending or receiving data.
