Installation

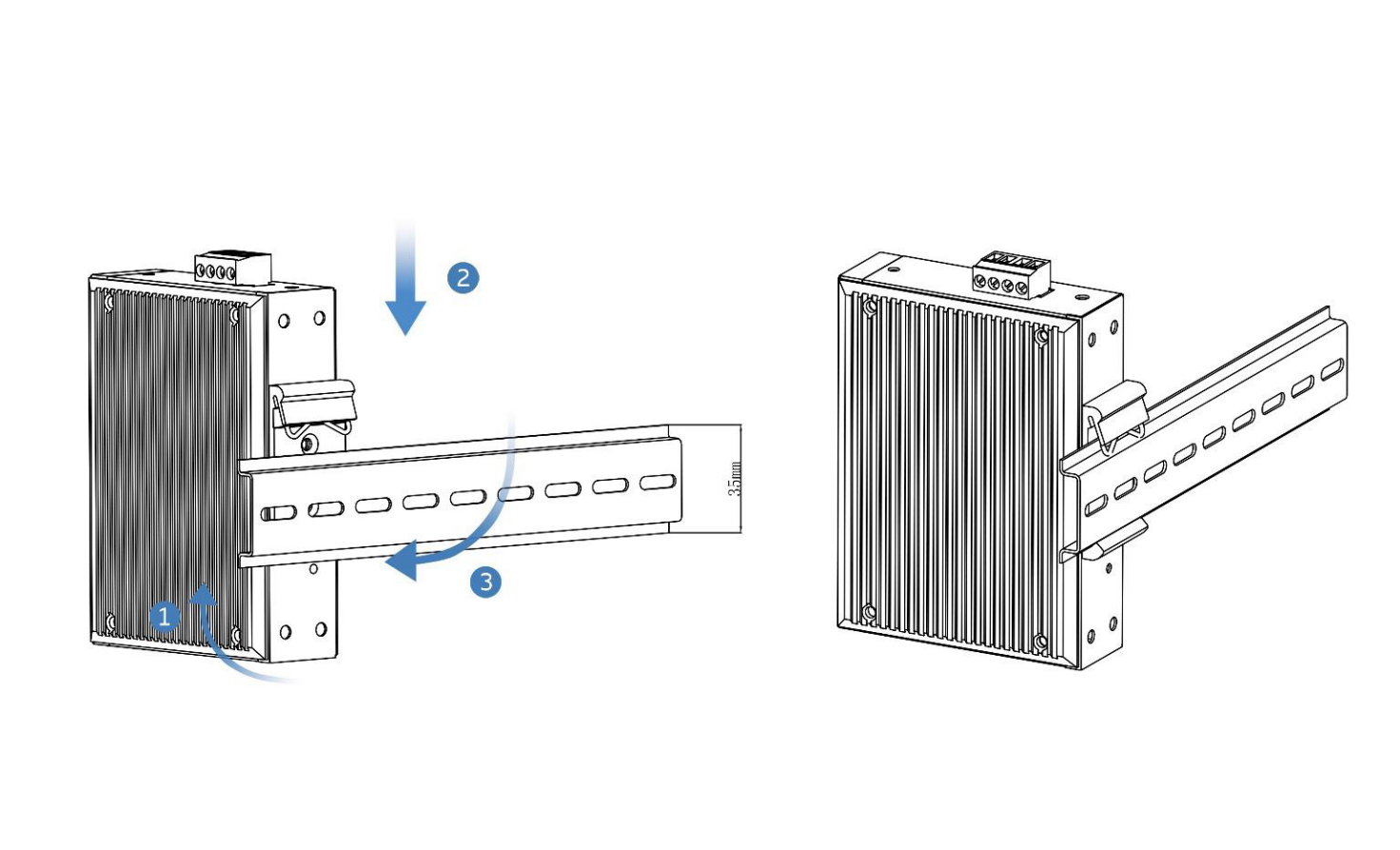

The product uses a 35mm standard DIN rail mounting suitable for most industrial scenarios, and the mounting steps are as follows:

  • Check if the DIN rail mounting kit is securely attached.
  • Attach the bottom part of the DIN rail mounting kit (the spring-supported side) to the DIN rail, then attach the top part to the DIN rail.
  • Verify and confirm that the product is securely mounted on the DIN rail, then the installation is complete.

Tip: Attach the bottom part lightly, lift it upwards, and then attach the top part.

Pre-Installation Warnings:

  • Place the device in a stable environment to prevent damage from falling.
  • When powering the device, ensure the voltage range and the correctness of the power supply's polarity to prevent damage from incorrect operations.
  • To reduce the risk of electric shock, ensure that the device's operating environment is well-grounded.
  • Never arbitrarily disassemble the device casing.
  • When placing the switch, avoid dusty areas and regions with strong electromagnetic fields.
