Static Routing (Static Routes)

To configure static routing settings on the RLTK451:

  • Follow the menus
  • Network
  • Static Routes

The RLTK451 supports up to 20 static routes.

ParameterDescriptionDefault Value
Interfacelan, wan_4G, wan_wired, vpnlan
TargetTarget IP address or IP rangeNull
NetmaskSubnet mask of the target networkNull
GatewayIP address to route toNull
MetricUsed to make routing decisionsNull

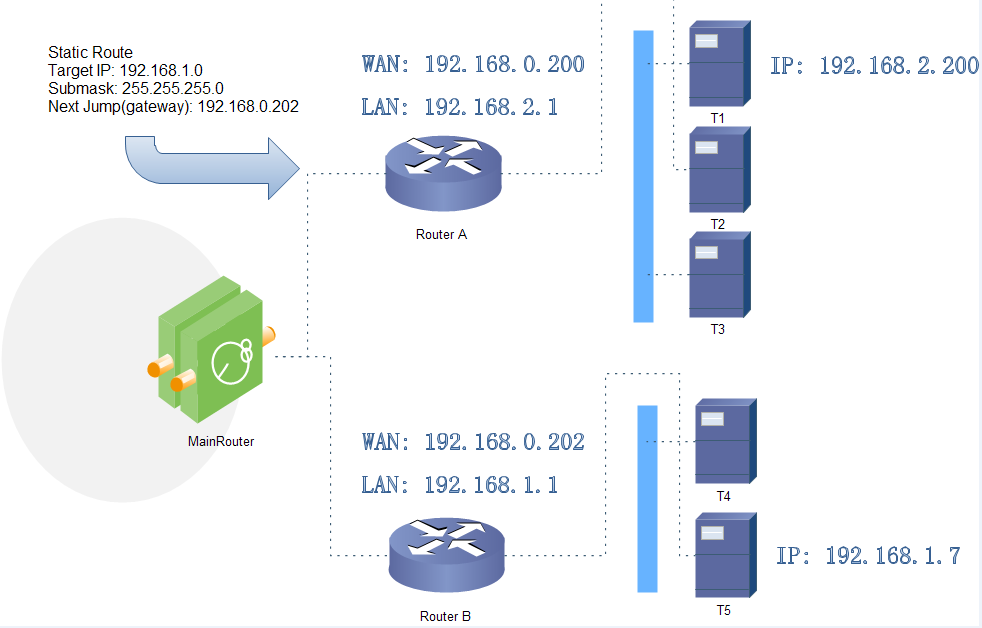

Example Connection Diagram​

StaticRouteExample-451

Router A's WAN port and Router B's WAN port are connected to the 192.168.0.0 network. Router A's LAN network is 192.168.2.0 and Router B's LAN network is 192.168.1.0. When we set a static route on Router A and access 192.168.1.X, the communication will automatically be routed to Router B.

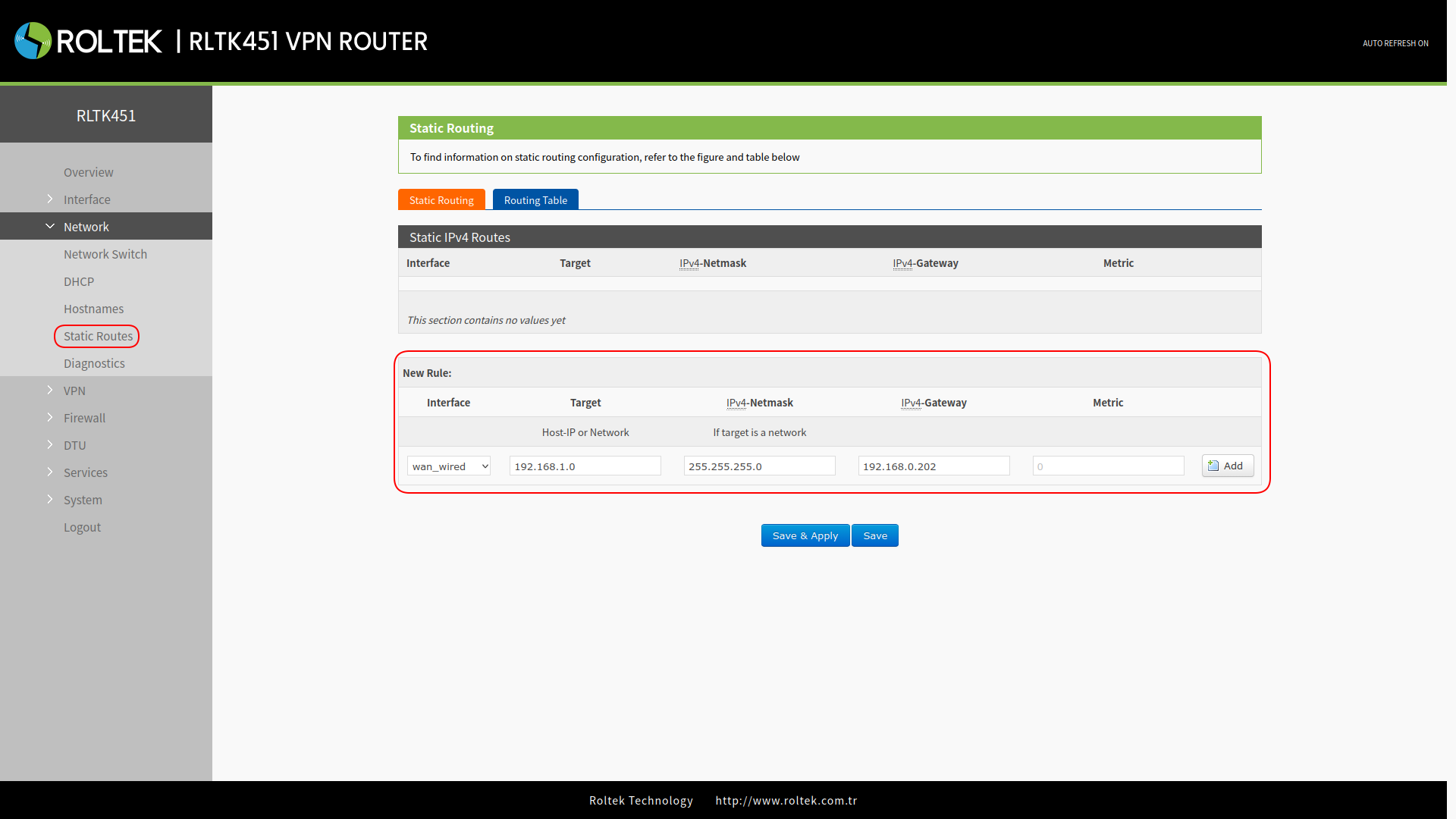

Router A:​

StaticRouteRouterA-451

Router B:​

StaticRouteRouterB-451

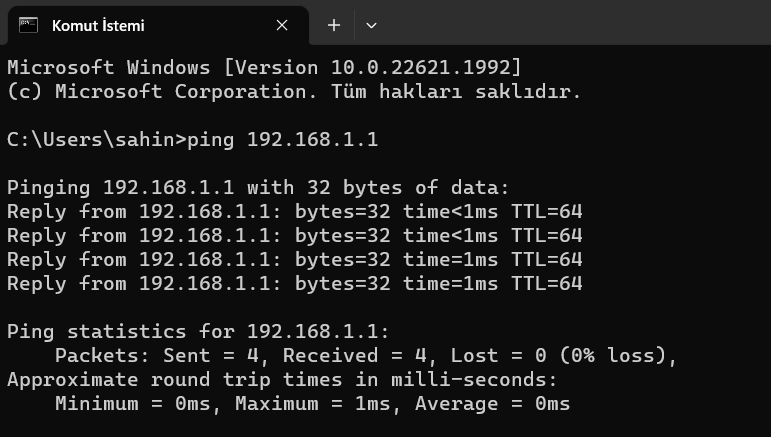

After setting all parameters, restart the device. StaticRouteCMD-451
