Network Switch

To view the settings:

  • Network
  • Network Switch

Follow the menus above. The explanations of the settings are shown in the table below. After configuring the parameters, click Save & Apply to save the settings.

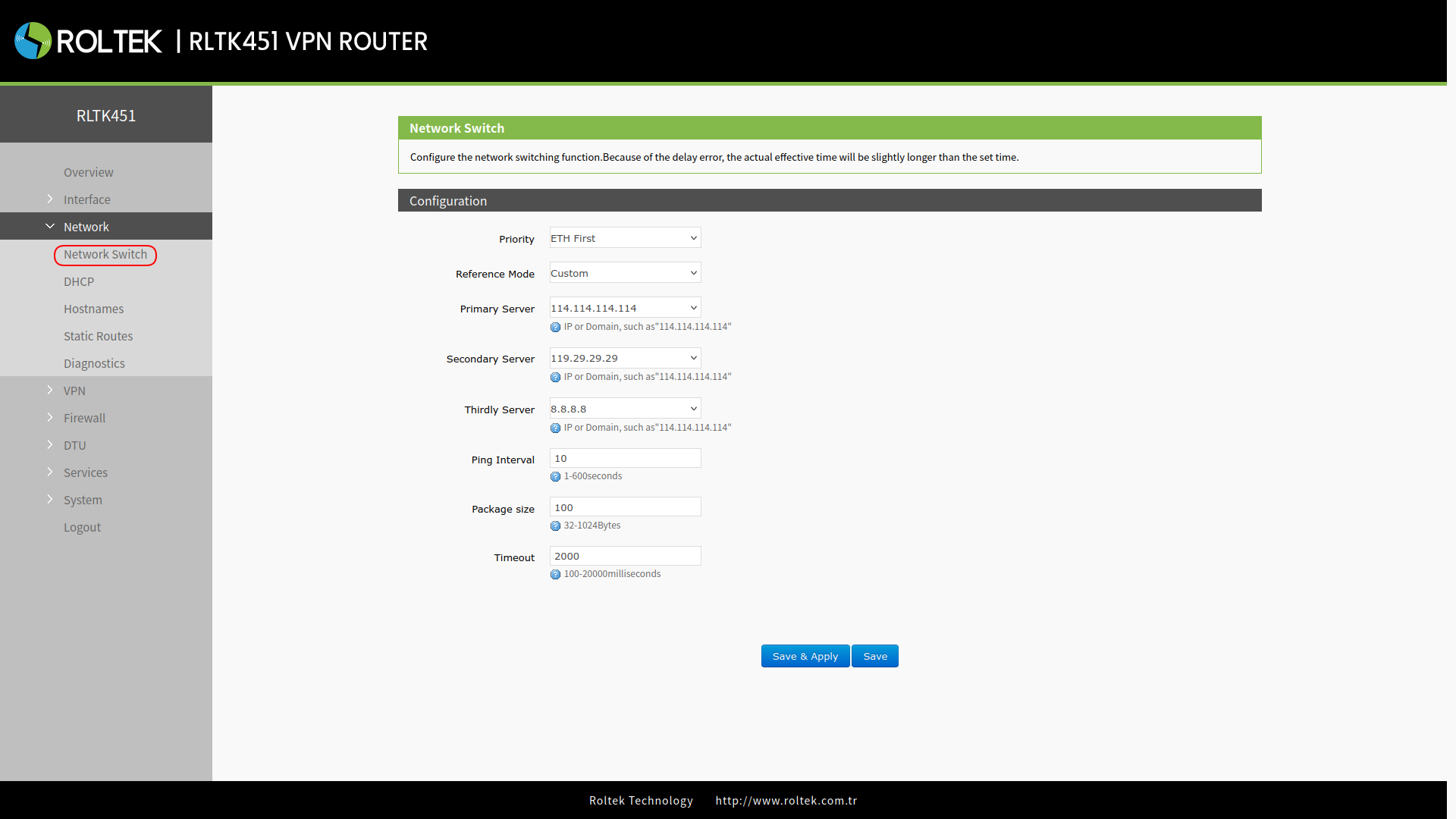

NetworkSwitch-451

ParameterDescriptionDefault Value
Priority

ETH First: Select the Ethernet WAN port as the primary connection. This option uses the wired Ethernet connection as the primary internet connection.
4G First: Select the SIM card as the primary wireless connection. This option uses the cellular connection as the primary internet connection.
Disable: Disables the network switching function. The device will continue to access the network through the current connection.

ETH First
Reference Mode

Custom: The router will ping a custom reference IP address or domain name to check whether the current connection is active.
Gateway: The router will ping the network gateway to check connection status.

Custom
Primary ServerIP address / domain name114.114.114.114
Secondary ServerIP address / domain name119.29.29.29
Third ServerIP address / domain name8.8.8.8
Ping Interval (s)Set ping interval, 1–600 seconds.10
Packet Size (byte)Set packet size, 32–1024 bytes.100
Timeout (ms)Ping timeout, 100–2000 ms.2000
  • If none of the three IP addresses/domain names can be pinged, the device will switch network connections and start the next ping detection cycle.
