General Settings

For the device's general firewall settings:

  • Firewall
  • General Settings

follow the menus.

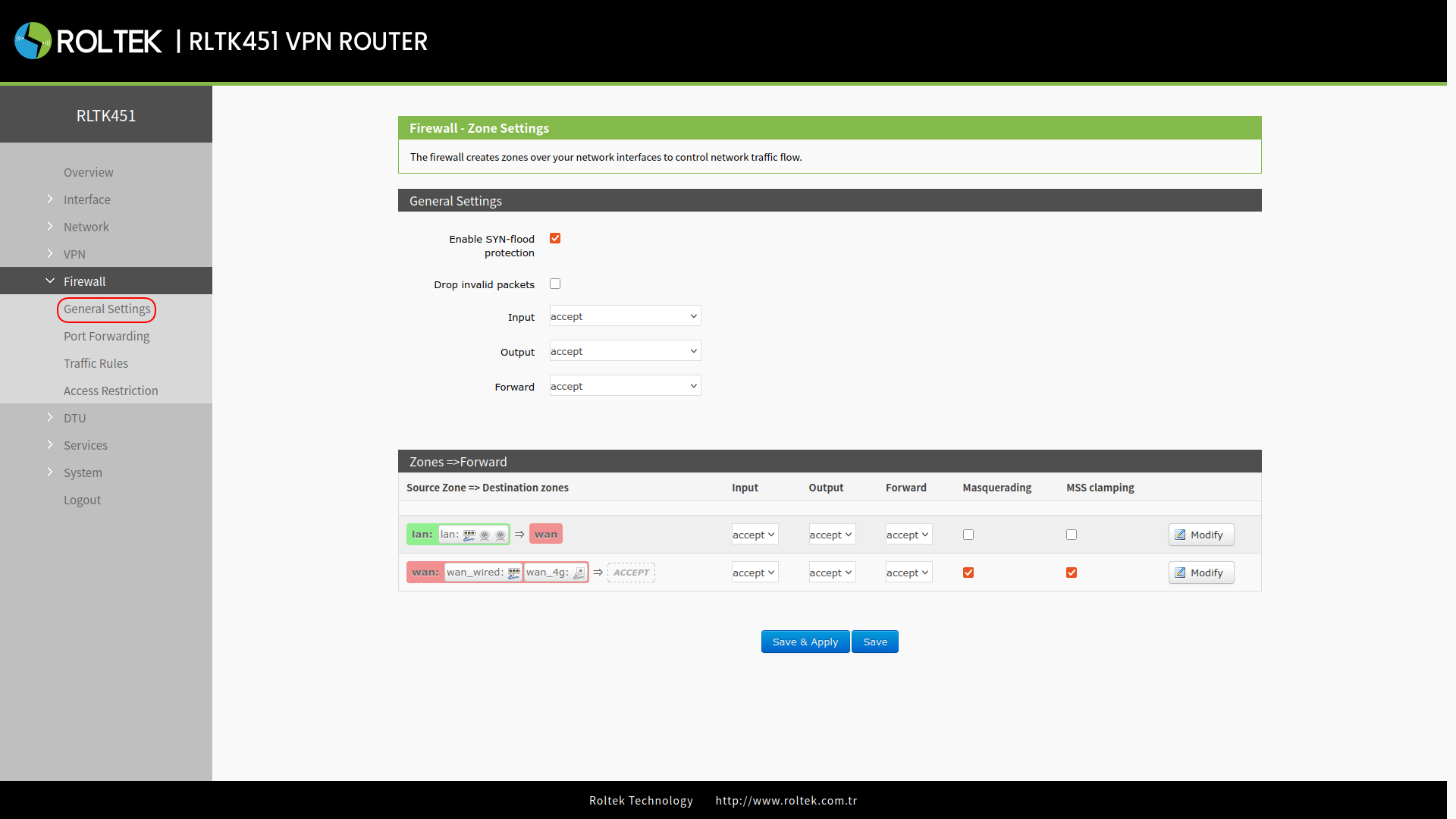

GeneralSettings-451

  • Input: Provides access to data packets to the router's IP.
  • Output: Data packets sent by the router's IP.
  • Forward: Data transmission between interfaces occurs without passing through the router.
  • Masquerading: Used for WAN and 4G interfaces. The source IP address is hidden before accessing the external network.
  • MSS Clamping: Limits MSS (Maximum Segment Size) packets, typically set to 1460.
