Web Interface

Introduction to the Web Interface​

Connect the computer to the LAN port of the RLTK421 via an Ethernet cable or connect the computer directly to the RLTK421's Wi-Fi network, then log in to the web page. The default parameters are as follows:

ParametersDefault Value
SSIDRLTK421-XXXX
LAN IP address192.168.1.1
Usernameroot
Passwordroot
Wi-Fi PasswordRLTK12345678

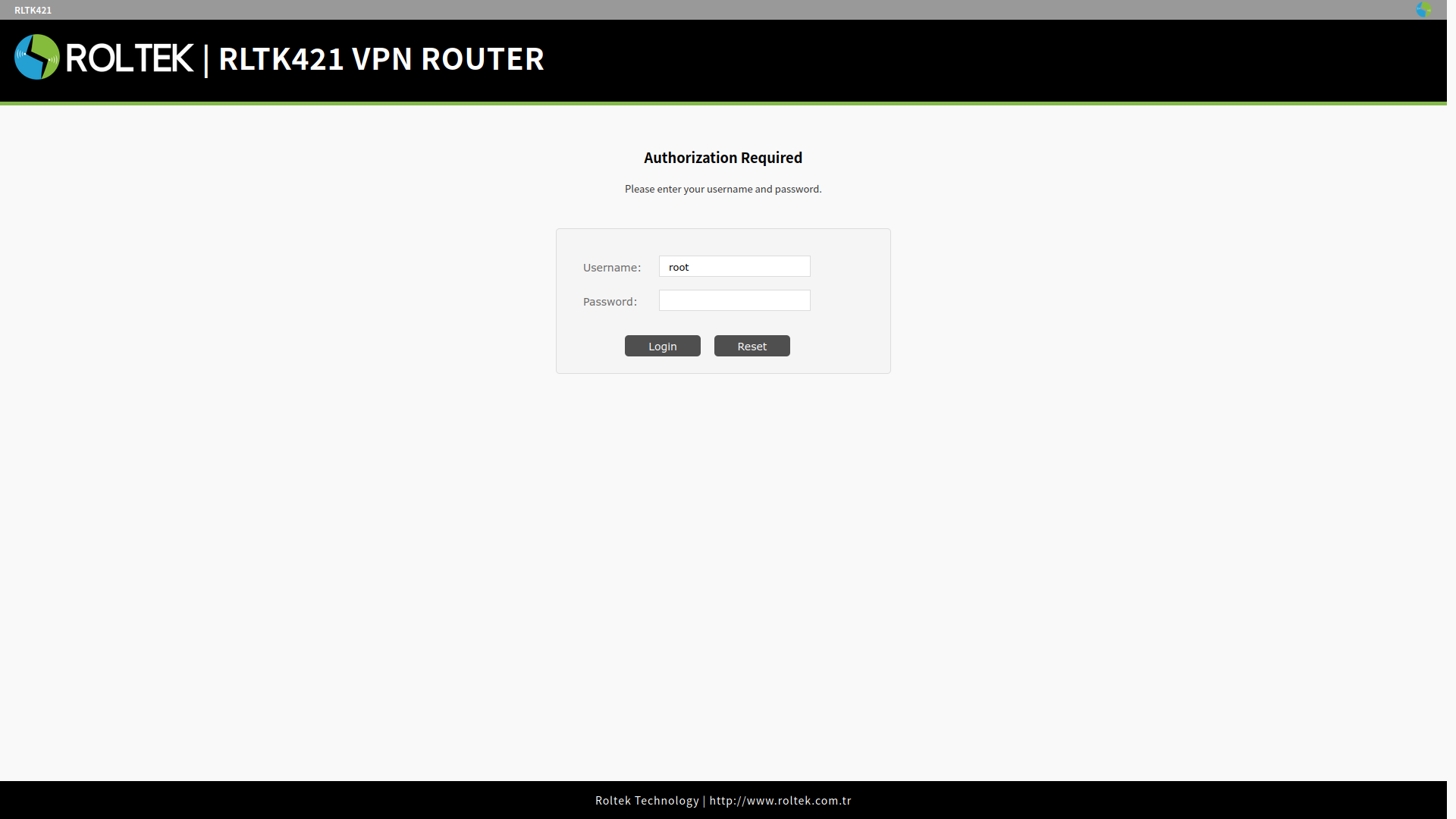

Make sure that the network being used (either ethernet or Wi-Fi) is set up as DHCP or that the subnet address is within the 192.168.1.0/24 block. To access the RLTK421's web page, type 192.168.1.1 in the browser's address bar. Both the username and password are set to "root". Then click the Login button.

WebLogin-421

Status Page​

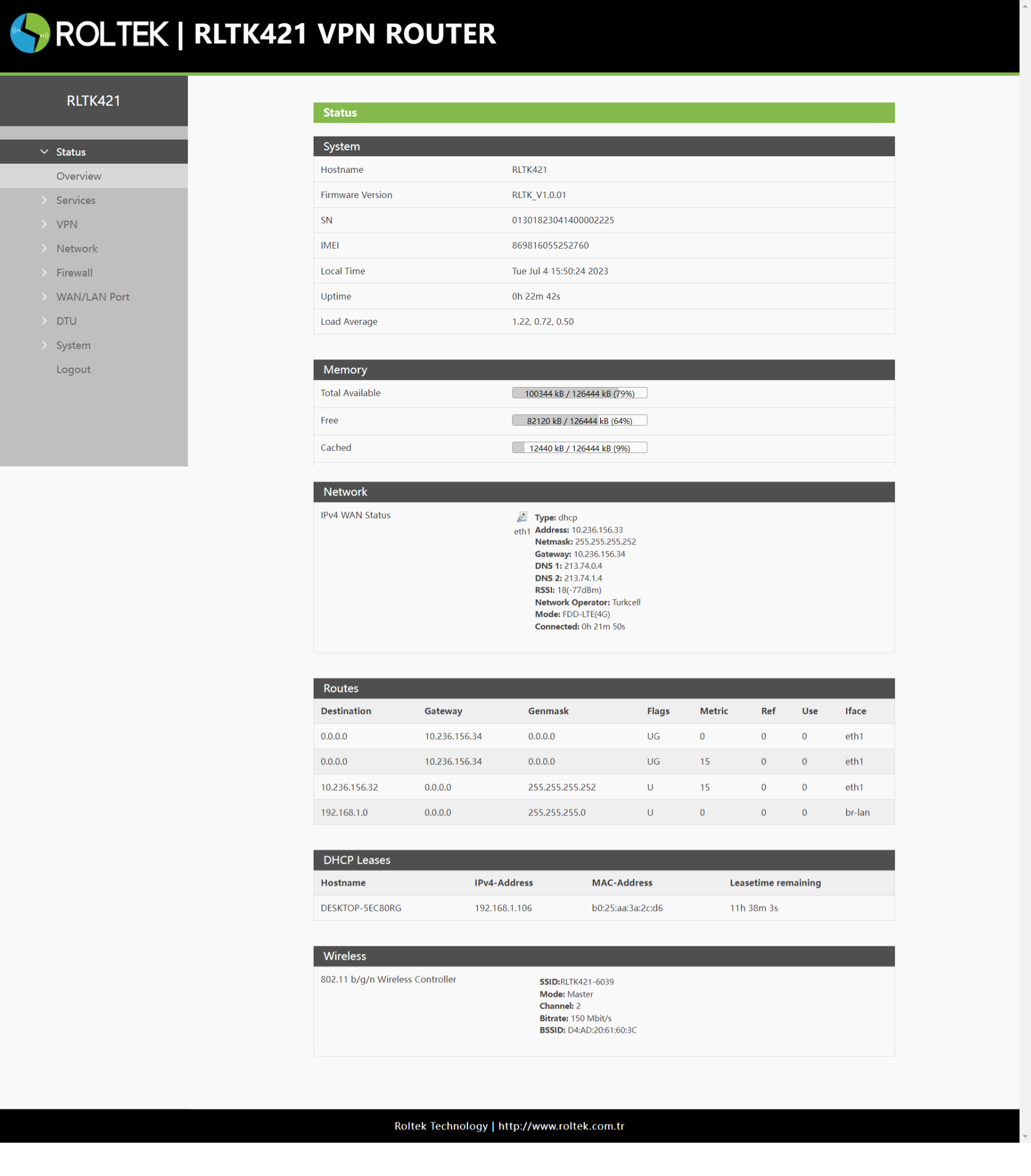

After logging into the device, the Status screen will appear as shown below.

Status-421
